SMF302B-C - 3.0 Amp High Efficiency Recovery Rectifiers

This page provides the datasheet information for the SMF302B-C, a member of the SMF301B-C 3.0 Amp High Efficiency Recovery Rectifiers family.

Datasheet Summary

Features

  • Ideal for surface mount.

📥 Download Datasheet

Datasheet preview – SMF302B-C

Datasheet Details

Part number SMF302B-C
Manufacturer SeCoS
File Size 317.22 KB
Description 3.0 Amp High Efficiency Recovery Rectifiers
Datasheet download datasheet SMF302B-C Datasheet

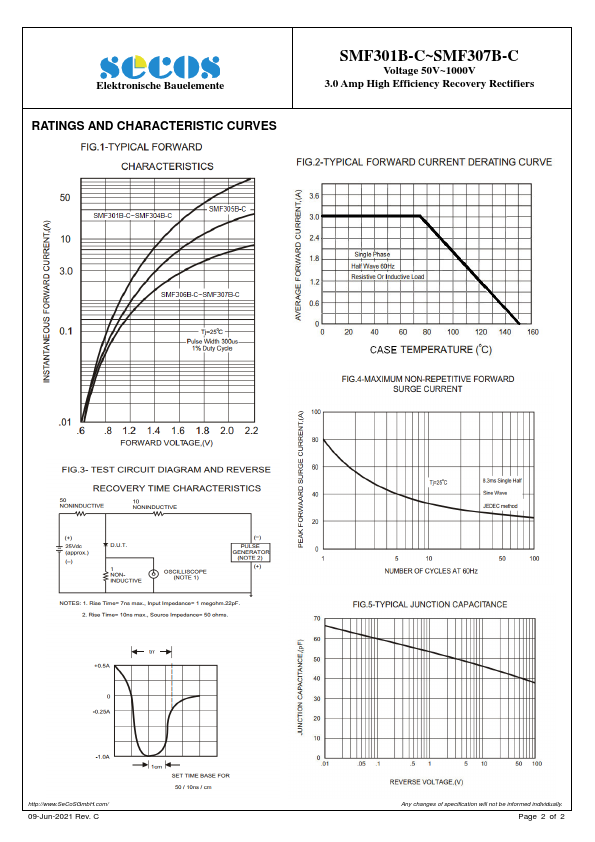

Additional preview pages of the SMF302B-C datasheet.

📁 Similar Datasheet

  • SMF302B - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES (Sunmate)
  • SMF302C - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES (Sunmate)
  • SMF302C - 3.0 AMP SURFACE MOUNT FAST RECOVERY RECTIFIERS (GW)
  • SMF30 - SURFACE MOUNT UNIDIRECTIONAL AND BIDIRECTIONAL TRANSIENT VOLTAGE SUPPRESSORS (HY)
  • SMF301B - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES (Sunmate)
  • SMF301C - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES (Sunmate)
  • SMF301C - 3.0 AMP SURFACE MOUNT FAST RECOVERY RECTIFIERS (GW)
  • SMF303B - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES (Sunmate)
  • SMF303C - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES (Sunmate)
  • SMF303C - 3.0 AMP SURFACE MOUNT FAST RECOVERY RECTIFIERS (GW)
Other Datasheets by SeCoS
  • SMF301B-C - 3.0 Amp High Efficiency Recovery Rectifiers
  • SMF303B-C - 3.0 Amp High Efficiency Recovery Rectifiers
  • SMF304B-C - 3.0 Amp High Efficiency Recovery Rectifiers
  • SMF305B-C - 3.0 Amp High Efficiency Recovery Rectifiers
  • SMF306B-C - 3.0 Amp High Efficiency Recovery Rectifiers
  • SMF307B-C - 3.0 Amp High Efficiency Recovery Rectifiers
  • SMF101A - Fast Recovery Rectifiers
  • SMF101B - Fast Recovery Rectifiers

Full PDF Text Transcription

Click to expand full text

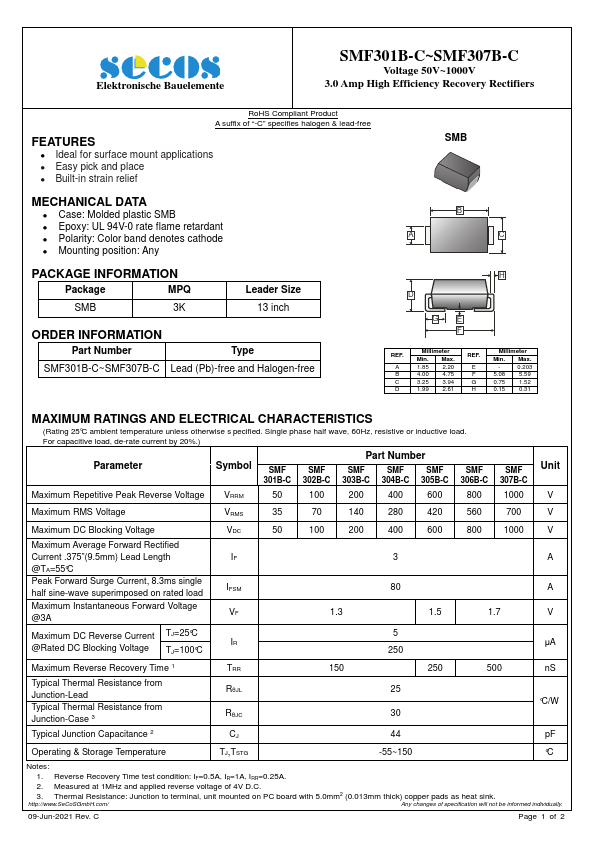

Elektronische Bauelemente SMF301B-C~SMF307B-C Voltage 50V~1000V 3.0 Amp High Efficiency Recovery Rectifiers RoHS Compliant Product A suffix of “-C” specifies halogen & lead-free FEATURES  Ideal for surface mount applications  Easy pick and place  Built-in strain relief MECHANICAL DATA  Case: Molded plastic SMB  Epoxy: UL 94V-0 rate flame retardant  Polarity: Color band denotes cathode  Mounting position: Any PACKAGE INFORMATION Package MPQ SMB 3K Leader Size 13 inch ORDER INFORMATION Part Number Type SMF301B-C~SMF307B-C Lead (Pb)-free and Halogen-free SMB B A C H D GE F REF. A B C D Millimeter Min. Max. 1.85 2.20 4.00 4.75 3.25 3.94 1.99 2.61 REF. E F G H Millimeter Min. Max. - 0.203 5.08 5.59 0.75 1.52 0.15 0.
