SSL40N03

N-Channel Enhancement Mode Power MosFET

SSL40N03 Features

* Fast Switching

* Simple Drive Requirement

* Dynamic dv/dt Rating

* Repetitive Avalanche Rated D REF. A b L4 c L3 L1 E G Millimeter Min. Max. 4.40 4.80 0.76 1.00 0.00 0.30 0.36 0.5 1.50 REF. 2.29 2.79 9.80 10.4 REF. c2 b2 D e L θ L2 Millimeter Min. Max. 1.25 1.45 1.17 1.47 8.6

SSL40N03 General Description

The SSL40N03 provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-263 is universally preferred for all commercial-industrial surface mount applications and suited for low voltage applications such as DC/DC conve.

SSL40N03 Datasheet (651.85 KB)

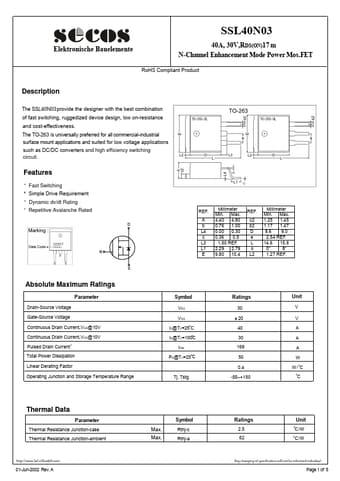

Preview of SSL40N03 PDF

Datasheet Details

Part number:

SSL40N03

Manufacturer:

SeCoS

File Size:

651.85 KB

Description:

N-channel enhancement mode power mosfet.
