S-1170B Datasheet, Regulator, Seiko Instruments

S-1170B Features

  • Regulator 1.5 V to 5.5 V, selectable in 0.1 V steps. ±1.0% 120 mV typ. (3.0 V output product, IOUT = 300 mA) During operation: 80 µA typ., 160 µA max. During shutdown: 0.1 µA typ., 1.0 µA max.

PDF File Details

Part number:

S-1170B

Manufacturer:

Seiko Instruments

File Size:

570.11kb

Download:

📄 Datasheet

Description:

Voltage regulator. Shutdown pin GND pin No connection Input voltage pin Output voltage pin 1 2 3

  • 1. The NC pin is electrically open. The NC

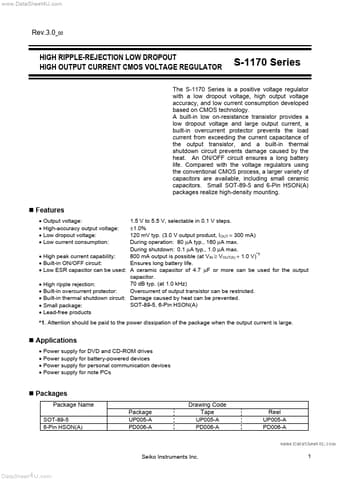

  • Datasheet Preview: S-1170B 📥 Download PDF (570.11kb)
    Page 2 of S-1170B Page 3 of S-1170B

    S-1170B Application

    • Applications
    • Power supply for DVD and CD-ROM drives
    • Power supply for battery-powered devices
    • Power supply for personal
