S-1200 - HIGH RIPPLE-REJECTION LOW DROPOUT LOW INPUT-AND-OUTPUT CAPACITANCE CMOS VOLTAGE REGULATOR

Datasheet Summary

Description

1 VOUT Output voltage pin 2 VSS GND pin 3 NC 1 No connection 4 ON/OFF Shutdown pin 5 VSS GND pin 6 VIN Input voltage pin

1.

The NC pin is electrically open.

The NC pin can be connected to VIN or VSS.

Features

  • 1.5 V to 5.5 V, selectable in 0.1 V steps.
  • Output voltage:.
  • Low ESR capacitor can be used: A ceramic capacitor of 0.1 µF or more can be used for the output capacitor. 2.0 V to 10.0 V.
  • Wide input voltage range:.
  • High-accuracy output voltage: ±1.0%.
  • Low dropout voltage: 140 mV typ. (3.0 V output product, IOUT = 100 mA).
  • Low current consumption: During operation: 18 µA typ. , 40 µA max. During shutdown: 0.01 µA typ. , 1.0 µA max.
  • Output.

📥 Download Datasheet

Datasheet preview – S-1200

Datasheet Details

Part number S-1200
Manufacturer Seiko Instruments
File Size 530.51 KB
Description HIGH RIPPLE-REJECTION LOW DROPOUT LOW INPUT-AND-OUTPUT CAPACITANCE CMOS VOLTAGE REGULATOR
Datasheet download datasheet S-1200 Datasheet
Additional preview pages of the S-1200 datasheet.

📁 Similar Datasheet

  • S-1200 - CMOS VOLTAGE REGULATOR (ABLIC)
  • S-1206 - CMOS VOLTAGE REGULATOR (ABLIC)
  • S-1212B - CMOS VOLTAGE REGULATOR (ABLIC)
  • S-1212D - CMOS VOLTAGE REGULATOR (ABLIC)
  • S-1214 - 1000mA VOLTAGE REGULATOR (ABLIC)
  • S-1222B - VOLTAGE REGULATOR (ABLIC)
  • S-1222D - VOLTAGE REGULATOR (ABLIC)
  • S-100-12 - 100W / 12.5 Volts / 1.5-30 Mhz / HF Communications (Acrian)
  • S-100-12 - RF Devices (Bharat Electronics)
  • S-1000 - VOLTAGE REGULATOR (ABLIC)
Other Datasheets by Seiko Instruments
  • S-1206 - ULTRA LOW CURRENT CONSUMPTION AND LOW DROPOUT CMOS VOLTAGE REGULATOR
  • S-1212B - LOW DROPOUT CMOS VOLTAGE REGULATOR
  • S-1212D - LOW DROPOUT CMOS VOLTAGE REGULATOR
  • S-1000 - Ultra Small Package High Precision Voltage Detector
  • S-1002 - VOLTAGE DETECTOR
  • S-1003 - HIGH-ACCURACY VOLTAGE DETECTOR
  • S-1004 - VOLTAGE DETECTOR
  • S-1009 - SUPER-LOW CURRENT CONSUMPTION SUPER HIGH-ACCURACY VOLTAGE DETECTOR

Full PDF Text Transcription

Click to expand full text

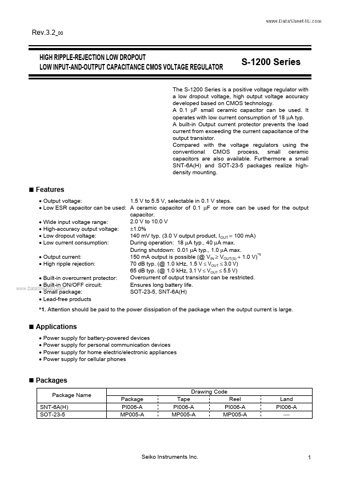

Rev.3.2_00 HIGH RIPPLE-REJECTION LOW DROPOUT LOW INPUT-AND-OUTPUT CAPACITANCE CMOS VOLTAGE REGULATOR S-1200 Series The S-1200 Series is a positive voltage regulator with a low dropout voltage, high output voltage accuracy developed based on CMOS technology. A 0.1 µF small ceramic capacitor can be used. It operates with low current consumption of 18 µA typ. A built-in Output current protector prevents the load current from exceeding the current capacitance of the output transistor. Compared with the voltage regulators using the conventional CMOS process, small ceramic capacitors are also available. Furthermore a small SNT-6A(H) and SOT-23-5 packages realize highdensity mounting. „ Features 1.5 V to 5.5 V, selectable in 0.1 V steps.
