S-80917C, S-809xxC - ULTRA-SMALL PACKAGE HIGH-PRECISION VOLTAGE DETECTOR

Seiko Instruments

📥 Download Datasheet

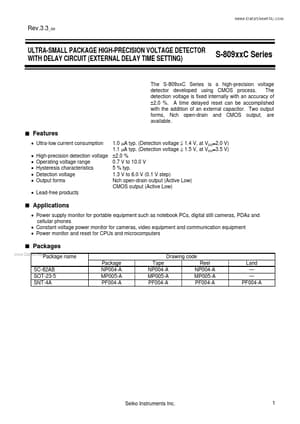

S-80917C Datasheet Preview — This datasheet PDF includes multiple part numbers: S-80917C, S-809xxC. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	S-80917C, S-809xxC
Manufacturer	Seiko ↗ Instruments
File Size	596.15 KB
Description	ULTRA-SMALL PACKAGE HIGH-PRECISION VOLTAGE DETECTOR
Datasheet	S-809xxC_SeikoInstruments.pdf
Note	This datasheet PDF includes multiple part numbers: S-80917C, S-809xxC. Please refer to the document for exact specifications by model.

S-80917C Product details

Features

Ultra-low current consumption.
1.0 μA typ. (Detection voltage ≤ 1.4 V, at VDD=2.0 V) 1.1 μA typ. (Detection voltage ≥ 1.5 V, at VDD=3.5 V) High-precision detection voltage ±2.0 % Operating voltage range 0.7 V to 10.0 V Hysteresis characteristics 5 % typ. Detection voltage 1.3 V to 6.0 V (0.1 V step) Output forms Nch open-drain output (Active Low) CMOS output (Active Low) Lead-free products.
