S-8110C CMOS TEMPERATURE SENSOR IC

1 VDD Power supply pin 2 VSS GND pin 3 NC *1 No connection 4 VOUT Output voltage pin *1. The NC pin is electrically open. The NC pin can be connected to VDD or VSS. Table 3 Pin No. Pin name Pin description 1 VSS GND pin 2 VDD Power supply pin 3 VOUT Output voltage pin 4.

S-8110C/8120C Series www.sii-ic.com © Seiko Instruments Inc., 2002-2015 CMOS TEMPERATURE SENSOR IC Rev.5.1_00 The S-8110C/8120C Series is a family of high-precision temperature sensor ICs on a single chip with a linear output voltage for temperature changes. Each chip is composed of a temperature sensor, a constant current circuit, and an operational amplifier. It can be used at temperatures ranging from 40°C to +100°C. These devices have much better linearity than other temperature .

S-8110C Features

* Temperature accuracy S-8110C Series: ±5.0°C (

* 30°C to +100°C) S-8120C Series: ±2.5°C (

* 30°C to +100°C)

* Linear output voltage

* 8.20 mV/°C typ. Ta =

* 30°C: 1.951 V typ. Ta = +30°C: 1.474 V typ. Ta = +100°C: 0.882 V typ.

* Nonlinearit

S-8110C-SeikoInstruments.pdf

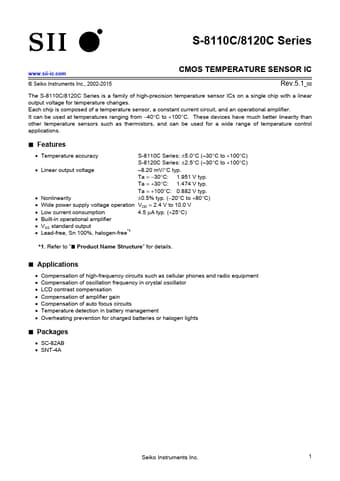

S-8110C Datasheet Preview — Preview of S-8110C PDF

Datasheet Details

Part number:

S-8110C

Manufacturer:

Seiko Instruments

File Size:

431.46 KB

Description:

Cmos temperature sensor ic.
