S24CS01A, S24CS02A Datasheet - Seiko Instruments

S24CS01A, S24CS02A, (S-24CS0xA) 2-Wire CMOS Serial EPROM

www.DataSheet4U.com Rev.2.0_10 2-WIRE CMOS SERIAL E2PROM S-24CS01A/02A/04A/08A The S-24CS01A/02A/04A/08A is a 2-wired, low power and wide range ope.

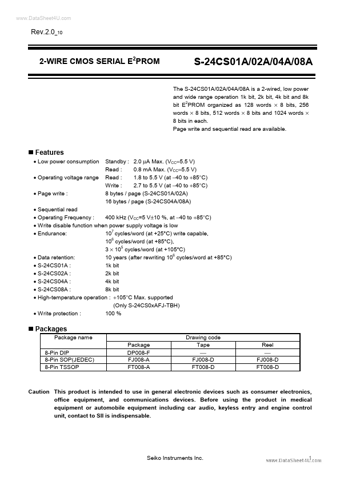

datasheet Preview Page 1 from Datasheet4u.com

S24CS02A_SeikoInstruments.pdf

S24CS01A Datasheet Preview — This datasheet PDF includes multiple part numbers: S24CS01A, S24CS02A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

S24CS01A, S24CS02A

Manufacturer:

Seiko Instruments

File Size:

474.05 KB

Description:

(S-24CS0xA) 2-Wire CMOS Serial EPROM

Note:

This datasheet PDF includes multiple part numbers: S24CS01A, S24CS02A.
Please refer to the document for exact specifications by model.

Features

* Low power consumption
* Operating voltage range
* Page write : Standby : 2.0 µA Max. (VCC=5.5 V) Read : 0.8 mA Max. (VCC=5.5 V) Read : 1.8 to 5.5 V (at
* 40 to +85°C) Write : 2.7 to 5.5 V (at
* 40 to +85°C) 8 bytes / page (S-24CS01A/02A) 16 bytes / page (S-24C
