S-81221SG Datasheet (319.72 KB)
S-81221SG
Seiko
319.72 KB
High precision voltage regulator.

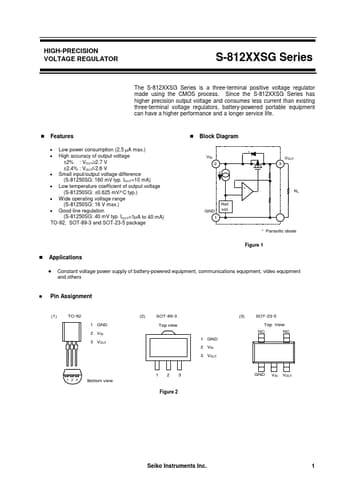

HIGH-PRECISION VOLTAGE REGULATOR
S-812XXSG Series
The S-812XXSG Series is a three-terminal positive voltage regulator made using the CMOS process. S.
* Block Diagram Low power consumption (2.5 A max.) High accuracy of output voltage ±2% : VOUT2.7 V ±2.4% : VOUT2.6 V Small input/output voltage difference (S-81250SG: 160 mV typ. IOUT=10 mA) Low temperature coefficient of output voltage (S-81250SG: ±0.625 mV/C typ.) Wide operating vo
