S-81242SG, S-81211SG - HIGH PRECISION VOLTAGE REGULATOR

Seiko

Datasheet Details

Part number	S-81242SG, S-81211SG
Manufacturer	Seiko ↗
File Size	317.79 KB
Description	HIGH PRECISION VOLTAGE REGULATOR
Datasheet	S-81211SG-Seiko.pdf
Note	This datasheet PDF includes multiple part numbers: S-81242SG, S-81211SG. Please refer to the document for exact specifications by model.

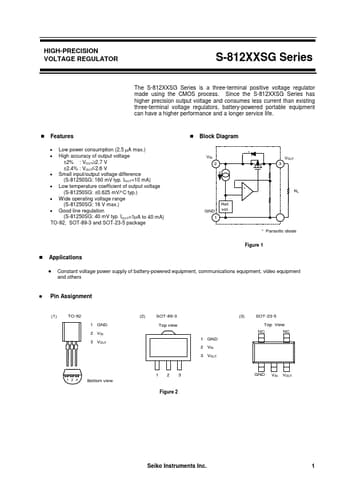

Block Diagram Low power consumption (2.5 A max. ) High accuracy of output voltage ±2% : VOUT2.7 V ±2.4% : VOUT2.6 V Small input/output voltage difference (S-81250SG: 160 mV typ. IOUT=10 mA) Low temperature coefficient of output voltage (S-81250SG: ±0.625 mV/C typ. ) Wide operating voltage range (S-81250SG: 16 V max. ) Good line regulation (S-81250SG: 40 mV typ. IOUT=1 A to 40 mA) TO-92, SOT-89-3 and SOT-23-5 package VIN 2.
VOUT 3 Ref. GND vol. 1 + - RL.
Parasitic.
