S-81253SG, S-81211SGY-X, HIGH PRECISION VOLTAGE REGULATOR

HIGH-PRECISION VOLTAGE REGULATOR S-812XXSG Series The S-812XXSG Series is a three-terminal positive voltage regulator made using the CMOS process.S.

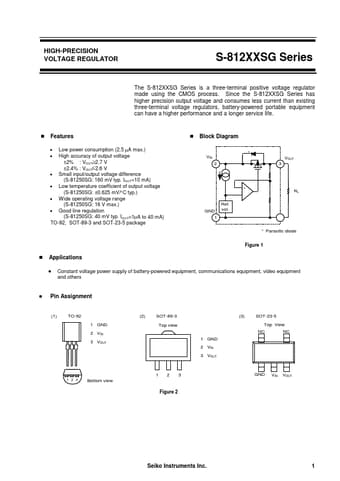

datasheet Preview Page 1 from Datasheet4u.com

S-81211SGY-X-Seiko.pdf

S-81253SG Datasheet Preview — This datasheet PDF includes multiple part numbers: S-81253SG, S-81211SGY-X. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

S-81253SG, S-81211SGY-X

Manufacturer:

Seiko

File Size:

319.72 KB

Description:

HIGH PRECISION VOLTAGE REGULATOR

Note:

This datasheet PDF includes multiple part numbers: S-81253SG, S-81211SGY-X.
Please refer to the document for exact specifications by model.

Features

* Block Diagram Low power consumption (2.5 A max. ) High accuracy of output voltage ±2% : VOUT2.7 V ±2.4% : VOUT2.6 V Small input/output voltage difference (S-81250SG: 160 mV typ. IOUT=10 mA) Low temperature coefficient of output voltage (S-81250SG: ±0.625 mV/C typ. ) Wide operating vo

Applications

* Figure 1 Constant voltage power supply of battery-powered equipment, communications equi
