VT-120-F - Quartz Crystal Unit

VT-120-F Description

VT-120-F Quartz Crystal Unit .

VT-120-F Features

* Compact 1.2Φ tubular package. Photolithograhic process Excellent low drive level characteristics. Complete Pb-free Complies with EU RoHS directive Standard Specifications Item Symbol   Nominal Frequency f_nom   Frequency Tolerance f_tol   Turnover Temperature Ti   Parabolic Coefficient B  

VT-120-F Applications

* Small/Thin Watches. Sub-clock function for a variety of Microcomputer etc. (Temperature: 25±2℃, DL;0.1μW) Specifications Conditions Note 32.768kHz ±20×10-6 Please specify +25±5℃ (-0.035±10%)×10-6/℃2 6pF 12.5pF 50kΩ max. 1.0μW max. 0.1μW typ. 0.8pF typ. ±3×10-6 +25±3℃, First Year -20 +60

📥 Download Datasheet

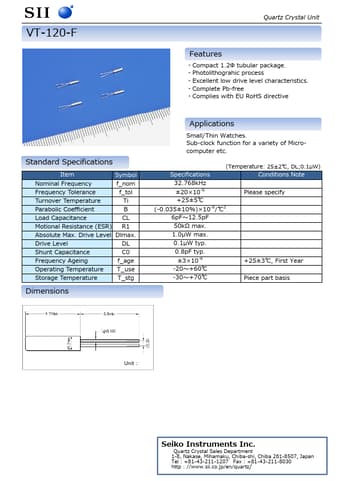

Preview of VT-120-F PDF

Datasheet Details

Part number
VT-120-F
Manufacturer
Seiko
File Size
95.74 KB
Datasheet
VT-120-F-Seiko.pdf
Description
Quartz Crystal Unit
