2N3904-T18 - GENERAL PURPOSE HERMETIC NPN SILICON TRANSISTOR

📥 Download Datasheet

Datasheet preview – 2N3904-T18

Datasheet Details

Part number 2N3904-T18
Manufacturer Seme LAB
File Size 78.78 KB
Description GENERAL PURPOSE HERMETIC NPN SILICON TRANSISTOR
Datasheet download datasheet 2N3904-T18 Datasheet
Additional preview pages of the 2N3904-T18 datasheet.

📁 Similar Datasheet

  • 2N3904 - NPN switching transistor (NXP)
  • 2N3904 - NPN Amplifier (Fairchild Semiconductor)
  • 2N3904 - Silicon NPN Transistor (Toshiba)
  • 2N3904 - Silicon NPN Transistor (NTE)
  • 2N3904 - NPN Transistor (Multicomp)
  • 2N3904 - EPITAXIAL PLANAR NPN TRANSISTOR (KEC)
  • 2N3904 - NPN SILICON TRANSISTOR (UTC)
  • 2N3904 - NPN Transistor (Motorola)
  • 2N3904 - SMALL SIGNAL NPN TRANSISTOR (STMicroelectronics)
  • 2N3904 - NPN SILICON TRANSISTOR (CENTRAL SEMICONDUCTOR)
Other Datasheets by Seme LAB

Full PDF Text Transcription

Click to expand full text

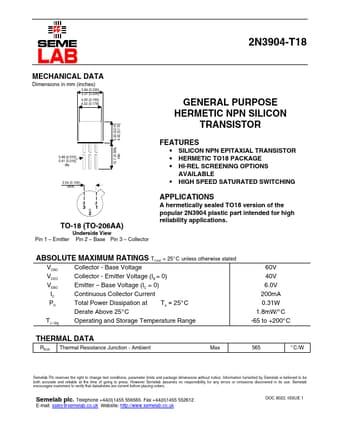

2N3904-T18 MECHANICAL DATA Dimensions in mm (inches) 5.84 (0.230) 5.31 (0.209) 4.95 (0.195) 4.52 (0.178) GENERAL PURPOSE HERMETIC NPN SILICON TRANSISTOR 4.32 (0.170) 12.7 (0.500) 5.33 (0.210) 0.48 (0.019) 0.41 (0.016) dia. 2.54 (0.100) Nom. 31 2 TO-18 (TO-206AA) Underside View Pin 1 – Emitter Pin 2 – Base Pin 3 – Collector min. FEATURES • SILICON NPN EPITAXIAL TRANSISTOR • HERMETIC TO18 PACKAGE • HI-REL SCREENING OPTIONS AVAILABLE • HIGH SPEED SATURATED SWITCHING APPLICATIONS A hermetically sealed TO18 version of the popular 2N3904 plastic part intended for high reliability applications.
