2N5344 Datasheet - Seme LAB

2N5344 Bipolar PNP Device

2N5344 Dimensions in mm (inches). 3.68 (0.145) rad. max. 6.35 (0.250) 8.64 (0.340) 3.61 (0.142) 4.08(0.161) rad. Bipolar PNP Device in a Hermetically sealed TO66 Metal Package. 11.94 (0.470) 12.70 (0.500) 24.13 (0.95) 24.63 (0.97) 1 14.48 (0.570) 14.99 (0.590) 2 0.71 (0.028) 0.86 (0.034) Bipolar PNP Device. VCEO = 250V IC = 1A All Semelab hermetically sealed products can be processed in accordance with the requirements of BS, CECC and JAN, JANTX, JANTXV and JANS specifications 4.83 (0.

2N5344 Datasheet (33.58 KB)

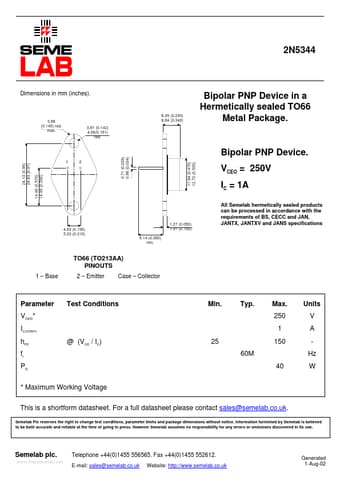

2N5344 Datasheet Preview — Preview of 2N5344 PDF

Datasheet Details

Part number:

2N5344

Manufacturer:

Seme LAB

File Size:

33.58 KB

Description:

Bipolar pnp device.
