2N5622 Datasheet - Seme LAB

2N5622 Bipolar NPN Device

2N5622 Dimensions in mm (inches). 25.15 (0.99) 26.67 (1.05) 10.67 (0.42) 11.18 (0.44) 1.52 (0.06) 3.43 (0.135) 6.35 (0.25) 9.15 (0.36) Bipolar NPN Device in a Hermetically sealed TO3 Metal Package. 38.61 (1.52) 39.12 (1.54) 0.97 (0.060) 1.10 (0.043) 29.9 (1.177) 30.4 (1.197) 22.23 (0.875) max. 16.64 (0.655) 17.15 (0.675) 1 2 Bipolar NPN Device. VCEO = 60V 3 (case) 3.84 (0.151) 4.09 (0.161) 7.92 (0.312) 12.70 (0.50) IC = 10A All Semelab hermetically sealed products can be processed .

2N5622 Datasheet (11.30 KB)

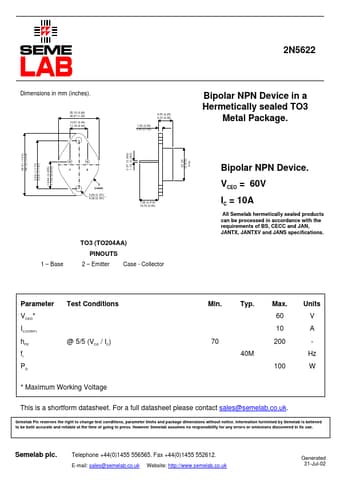

Preview of 2N5622 PDF

Datasheet Details

Part number:

2N5622

Manufacturer:

Seme LAB

File Size:

11.30 KB

Description:

Bipolar npn device.
