BUX11N - Bipolar NPN Device

Seme LAB

Datasheet Details

Part number	BUX11N
Manufacturer	Seme LAB
File Size	11.30 KB
Description	Bipolar NPN Device
Datasheet	BUX11N Datasheet
Additional preview pages of the BUX11N datasheet.

📁 Similar Datasheet

BUX11N - Silicon NPN Power Transistor (Inchange Semiconductor)
BUX11 - SILICON MULTI-EPITAXIAL NPN TRANSISTOR (TT)
BUX11 - SILICON POWER TRANSISTOR (SavantIC)
BUX11 - HIGH POWER TRANSISTOR (Comset Semiconductors)
BUX11 - NPN Transistor (INCHANGE)
BUX11A - HIGH CURRENT HIGH POWER HIGH SPEED SILICON N-P-N POWER TRANSISTOR (ETC)
BUX11P - Silicon NPN Power Transistor (Inchange Semiconductor)
BUX10 - HIGH POWER NPN SILICON TRANSISTOR (STMicroelectronics)
BUX10 - SILICON MULTI-EPITAXIAL NPN TRANSISTOR (TT)
BUX10 - SILICON POWER TRANSISTOR (SavantIC)

Other Datasheets by Seme LAB

BUX10X - NPN MULTI - EPITAXIAL POWER TRANSISTOR
BUX12 - NPN MULTI - EPITAXIAL POWER TRANSISTOR
BUX13 - Bipolar NPN Device
BUX14 - Bipolar NPN Device
BUX15 - Bipolar NPN Device
BUX16 - Bipolar NPN Device
BUX18 - Bipolar NPN Device
BUX20 - HIGH CURRENT HIGH SPEED HIGH POWER TRANSISTOR

Full PDF Text Transcription

Click to expand full text

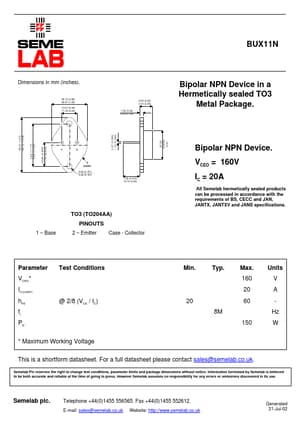

BUX11N Dimensions in mm (inches). 25.15 (0.99) 26.67 (1.05) 10.67 (0.42) 11.18 (0.44) 1.52 (0.06) 3.43 (0.135) 6.35 (0.25) 9.15 (0.36) Bipolar NPN Device in a Hermetically sealed TO3 Metal Package. 38.61 (1.52) 39.12 (1.54) 0.97 (0.060) 1.10 (0.043) 29.9 (1.177) 30.4 (1.197) 22.23 (0.875) max. 16.64 (0.655) 17.15 (0.675) 1 2 Bipolar NPN Device. VCEO = 160V 3 (case) 3.84 (0.151) 4.09 (0.161) 7.92 (0.312) 12.70 (0.50) IC = 20A All Semelab hermetically sealed products can be processed in accordance with the requirements of BS, CECC and JAN, JANTX, JANTXV and JANS specifications. TO3 (TO204AA) PINOUTS 1 – Base 2 – Emitter Case - Collector Parameter VCEO* IC(CONT) hFE ft PD Test Conditions Min. Typ. Max.
