D5030UK, METAL GATE RF SILICON FET

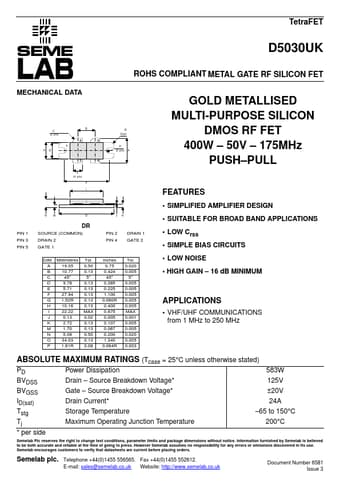

TetraFET D5030UK ROHS COMPLIANT METAL GATE RF SILICON FET MECHANICAL DATA C (2 pls) 1 HD B 2 3 5 4 E (4 pls) F I G (typ) P (2 pls) A GOLD M.

datasheet Preview Page 1 from Datasheet4u.com

D5030UK-SemeLAB.pdf

D5030UK Datasheet Preview — Preview of D5030UK PDF

Datasheet Details

Part number:

D5030UK

Manufacturer:

Seme LAB

File Size:

100.11 KB

Description:

METAL GATE RF SILICON FET

Features

* PIN 1 PIN 3 PIN 5 NM O DR SOURCE (COMMON) DRAIN 2 GATE 1 JK PIN 2 PIN 4 DRAIN 1 GATE 2 DIM Millimetres Tol. A 19.05 0.50 B 10.77 0.13 C 45° 5° D 9.78 0.13 E 5.71 0.13 F 27.94 0.13 G 1.52R 0.13 H 10.16 0.13 I 22.22 MAX J 0.13 0.02 K 2.72 0.13 M 1.70 0.13 N 5.08 0.5

Applications

* LOW Crss
* SIMPLE BIAS CIRCUITS
* LOW NOISE
* HIGH GAIN
* 16 dB MINIMUM APPLICATIONS
* VHF/UHF COMMUNICATIONS from 1 MHz to 250 MHz ABSOLUTE MAXIMUM RATINGS (Tcase = 25°C unless otherwise stated) PD Power Dissipation 583W BVDSS Drain
