SF_CV10806 Datasheet - Seme LAB

SF_CV10806 - Bipolar NPN Device in a Hermetically sealed TO18 Metal Package

CV10806 Dimensions in mm (inches).

5.84 (0.230) 5.31 (0.209) 4.95 (0.195) 4.52 (0.178) Bipolar NPN Device in a Hermetically sealed TO18 Metal Package.

Bipolar NPN Device.

VCEO = 30V 0.48 (0.019) 0.41 (0.016) dia.

IC = 0.1A All Semelab hermetically sealed products can be processed in accordance with the requirements of BS, CECC and JAN, JANTX, JANTXV and JANS specifications 3 2 1 2.54 (0.100) Nom.

TO18 (TO206AA) PINOUTS 1 Emitter 2 Base 3 Collector Parameter V

SF_CV10806_SemeLAB.pdf

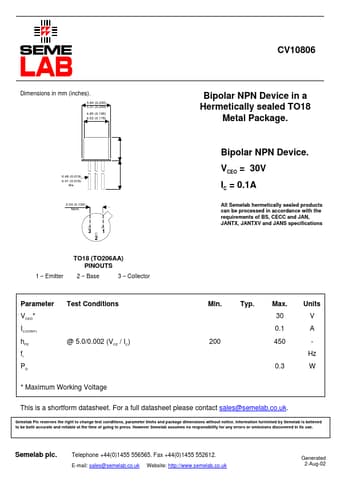

Preview of SF_CV10806 PDF

Datasheet Details

Part number:

SF_CV10806

Manufacturer:

Seme LAB

File Size:

11.20 KB

Description:

Bipolar npn device in a hermetically sealed to18 metal package.
