ZT83 Bipolar NPN Device in a Hermetically sealed TO18 Metal Package.

ZT83 Dimensions in mm (inches). 5.84 (0.230) 5.31 (0.209) 4.95 (0.195) 4.52 (0.178) Bipolar NPN Device in a Hermetically sealed TO18 Metal Package. Bipolar NPN Device. VCEO = 45V 0.48 (0.019) 0.41 (0.016) dia. IC = 0.5A All Semelab hermetically sealed products can be processed in accordance with the requirements of BS, CECC and JAN, JANTX, JANTXV and JANS specifications 3 2 1 2.54 (0.100) Nom. TO18 (TO206AA) PINOUTS 1 Emitter 2 Base 3 Collector Parameter VCEO.

ZT83 Datasheet (10.36 KB)

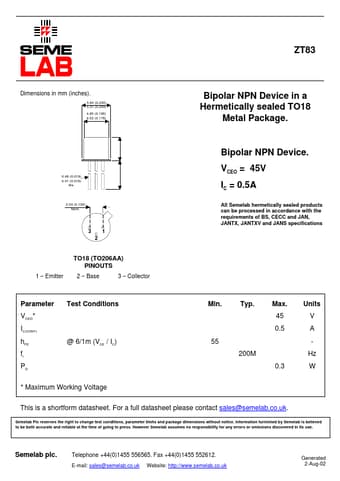

ZT83 Datasheet Preview — Preview of ZT83 PDF

Datasheet Details

Part number:

ZT83

Manufacturer:

Seme LAB

File Size:

10.36 KB

Description:

Bipolar npn device in a hermetically sealed to18 metal package..
