2N3800DCSM Datasheet - Semelab Plc

2N3800DCSM Dual Bipolar PNP Devices

Dimensions in mm (inches). m o .c U 4 t e e h S a at .D w w w 2.29 ± 0.20 (0.09 ± 0.008) 1.65 ± 0.13 (0.065 ± 0.005) 2N3800DCSM 2.54 ± 0.13 (0.10 ± 0.005) 2 1 A 6 6.22 ± 0.13 (0.245 ± 0.005) LCC2 (MO-041BB) Pinouts Pin 1 Collector 1 Pin 2 Base 1 Pin 3 Base 2 Parameter VCEO IC(CONT) hFE ft Test Conditions @ 10/1m (VCE / IC) m W o .c U Maximum Working Voltage 4 t e e h This is a shortform datasheet. For a full datasheet please contact sales@seme.

2N3800DCSM_SemelabPlc.pdf

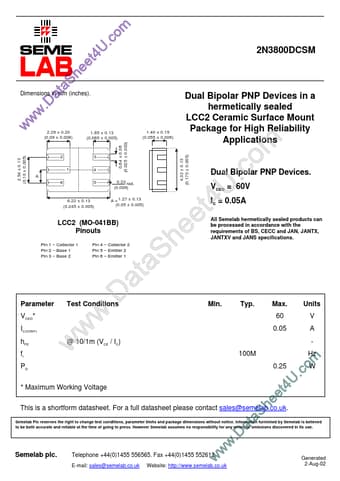

Preview of 2N3800DCSM PDF

Datasheet Details

Part number:

2N3800DCSM

Manufacturer:

Semelab Plc

File Size:

40.38 KB

Description:

Dual bipolar pnp devices.
