BT136-600 - 4 Quadrants Sensitive TRIAC

Datasheet Summary

Description

Semihow’s sensitive TRIAC product is a glass passivated device, has a low gate trigger current, high stability in gate trigger current to variation of operating temperature and high off state voltage.

It is generally suitable for power and phase control in ac application.

Features

  •  Repetitive Peak Off-State Voltage : 600V  R. M. S On.
  • State Current (IT(RMS) = 4A)  Sensitive Gate Trigger Current - 5[mA] of IGT at I, II and III Quadrants. - 12[mA] of IGT at IV Quadrant. VDRM = 600 V IT(RMS) = 4 A ITSM = 33 A IGT = 5mA/12mA Symbol TO-220.

📥 Download Datasheet

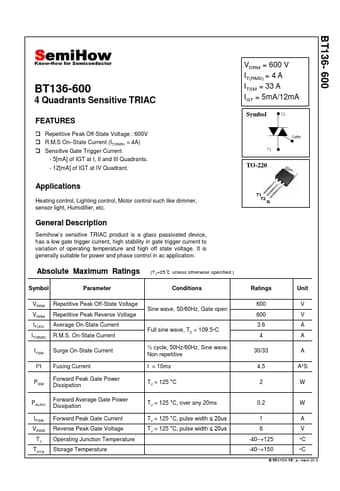

Datasheet preview – BT136-600

Datasheet Details

Part number BT136-600
Manufacturer SemiHow
File Size 364.53 KB
Description 4 Quadrants Sensitive TRIAC
Datasheet download datasheet BT136-600 Datasheet
Additional preview pages of the BT136-600 datasheet.

📁 Similar Datasheet

Other Datasheets by SemiHow

Full PDF Text Transcription

Click to expand full text
BT136- 600 BT136-600 4 Quadrants Sensitive TRIAC FEATURES  Repetitive Peak Off-State Voltage : 600V  R.M.S On–State Current (IT(RMS) = 4A)  Sensitive Gate Trigger Current - 5[mA] of IGT at I, II and III Quadrants. - 12[mA] of IGT at IV Quadrant. VDRM = 600 V IT(RMS) = 4 A ITSM = 33 A IGT = 5mA/12mA Symbol TO-220 Applications Heating control, Lighting control, Motor control such like dimmer, sensor light, Humidifier, etc. General Description Semihow’s sensitive TRIAC product is a glass passivated device, has a low gate trigger current, high stability in gate trigger current to variation of operating temperature and high off state voltage. It is generally suitable for power and phase control in ac application.
