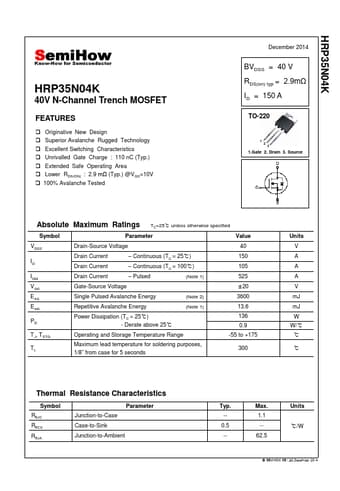

HRP35N04K
FEATURES
Originative New Design Superior Avalanche Rugged Technology Excellent Switching Characteristics Unrivalled Gate Charge : 110 n C (Typ.) Extended Safe Operating Area Lower RDS(ON) : 2.9 mΩ (Typ.) @VGS=10V 100% Avalanche Tested
December 2014
BVDSS = 40 V RDS(on) typ = 2.9mΩ ID = 150 A
TO-220
1 2 3
1.Gate 2. Drain 3. Source
Absolute Maximum Ratings TC=25℃ unless otherwise specified
Symbol
Parameter
Value
VDSS
IDM VGS EAS EAR
Drain-Source Voltage
Drain Current Drain Current Drain Current
- Continuous (TC = 25℃)
- Continuous (TC = 100℃)
- Pulsed
(Note 1)
Gate-Source Voltage
Single Pulsed Avalanche Energy
(Note 2)
Repetitive Avalanche Energy
(Note 1)
Power Dissipation (TC = 25℃)
- Derate above 25℃
40 150 105 525 ±20 3600 13.6 136 0.9
TJ, TSTG TL
Operating and Storage Temperature Range Maximum lead temperature for soldering purposes, 1/8” from case for 5 seconds
-55 to +175 300
Units V A A A V m J m J W
W/℃ ℃
℃
Thermal Resistance...
