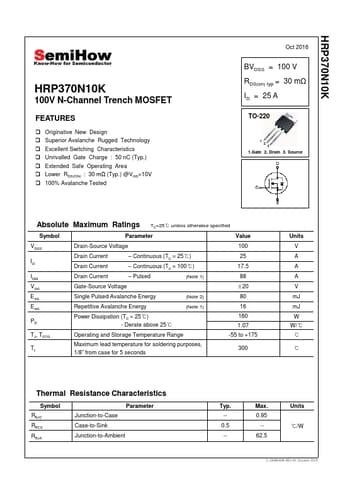

HRP370N10K
FEATURES
Originative New Design Superior Avalanche Rugged Technology Excellent Switching Characteristics Unrivalled Gate Charge : 50 n C (Typ.) Extended Safe Operating Area Lower RDS(ON) : 30 Pȍ (Typ.) @VGS=10V 100% Avalanche Tested
Oct 2016
BVDSS = 100 V RDS(on) typ = 30 Pȍ ID = 25 A
TO-220
1 23
1.Gate 2. Drain 3. Source
Absolute Maximum Ratings TC=25 unless otherwise specified
Symbol
Parameter
Value
VDSS
IDM VGS EAS EAR
Drain-Source Voltage
Drain Current Drain Current Drain Current
- Continuous (TC = 25)
- Continuous (TC = 100)
- Pulsed
(Note 1)
Gate-Source Voltage
Single Pulsed Avalanche Energy
(Note 2)
Repetitive Avalanche Energy
(Note 1)
Power Dissipation (TC = 25)
- Derate above 25
100 25 17.5 88 ρ20 80 16 160 1.07
TJ, TSTG TL
Operating and Storage Temperature Range Maximum lead temperature for soldering purposes, 1/8” from case for 5 seconds
-55 to +175...
