TPSMCJ12CA

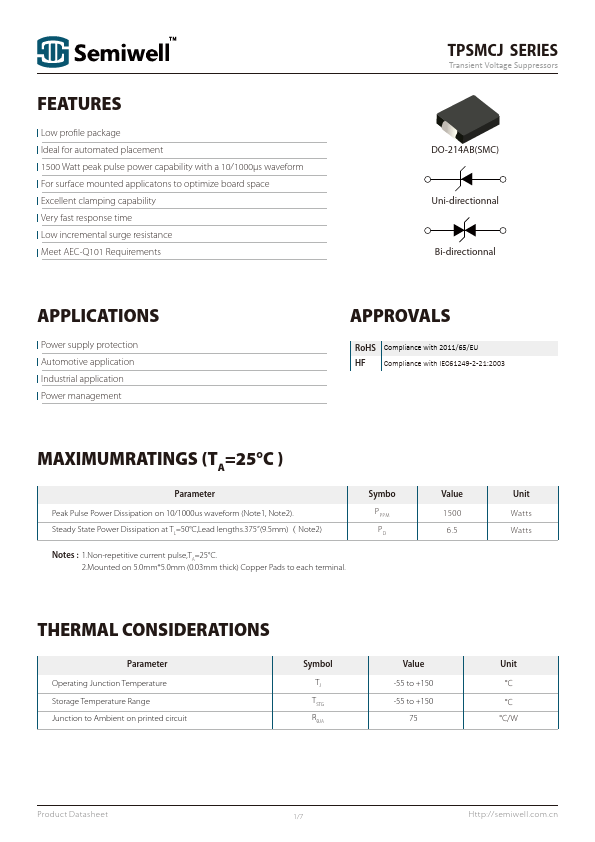

FEATURES
Low profile package Ideal for automated placement 1500 Watt peak pulse power capability with a 10/1000μs waveform For surface mounted applicatons to optimize board space Excellent clamping capability Very fast response time Low incremental surge resistance Meet AEC-Q101 Requirements
TPSMCJ SERIES
Transient Voltage Suppressors
DO-214AB(SMC) Uni-directionnal Bi-directionnal
APPLICATIONS
Power supply protection Automotive application Industrial application Power management
APPROVALS
Ro HS pliance with 2011/65/EU HF pliance with IEC61249-2-21:2003
MAXIMUMRATINGS (TA=25°C )
Parameter Peak Pulse Power Dissipation on 10/1000us waveform (Note1, Note2). Steady State Power Dissipation at TL=50°C,Lead lengths.375”(9.5mm)č Note2)
Notes : 1.Non-repetitive current pulse,TA=25°C. 2.Mounted on 5.0mm- 5.0mm (0.03mm thick) Copper Pads to each terminal.
Symbo PPPM PD
Value 1500 6.5
Unit Watts Watts
THERMAL CONSIDERATIONS
Parameter Operating Junction Temperature Storage Temperature Range...
