CS9803

Infrared Induction Control IC

CS9803 Features

* Operating voltage: 4.5V～5.5V (DC) Operating current≤1mA CDS input Pulse output for TRIAC drive or level output for relay drive Built-in 2-stage operational amplifier Adjustable output on time duration On

* chip regulator for PIR sensor Zero-crossing triggering Application: Home security syste

CS9803 General Description

CS9803 Infrared Induction Control IC The CS9803 is a p assive infra-red controller, using analog mixing digital design technique and manufactures by CMOS process which can either driver TRIAC or RELAY depending on user’s choice. With special noise immunity technique, CS9803 is the most stable pass.

CS9803 Datasheet (265.31 KB)

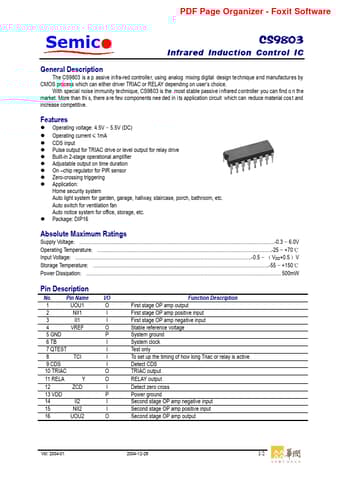

Preview of CS9803 PDF

Datasheet Details

Part number:

CS9803

Manufacturer:

Semico

File Size:

265.31 KB

Description:

Infrared induction control ic.
