2N3735 - Silicon NPN Transistor

Product Overview

Semicoa Semiconductor

Datasheet Details

Part number	2N3735
Manufacturer	Semicoa Semiconductor
File Size	368.32 KB
Description	Silicon NPN Transistor
Datasheet	2N3735 Datasheet

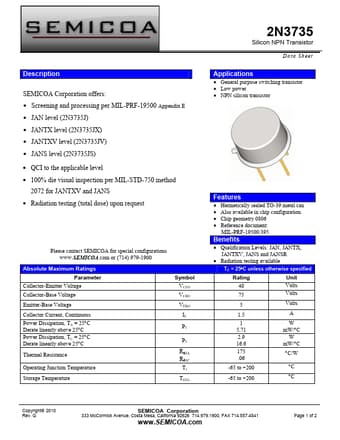

Additional preview pages of the 2N3735 datasheet.

Product details

Description

SEMICOA Corporation offers: Screening and processing per MIL-PRF-19500 Appendix E JAN level (2N3735J) JANTX level (2N3735JX) JANTXV level (2N3735JV) JANS level (2N3735JS) QCI to the applicable level 100% die visual inspection per MIL-STD-750 method 2072 for JANTXV and JANS Radiation testing (total dose) upon request Please contact SEMICOA for special configurations www.SEMICOA.com or (714) 979-1900 Absolute Maximum

Features

Hermetically sealed TO-39 metal can.
Also available in chip configuration.
Chip geometry 0806.
Reference document: MIL-PRF-19500/395 Benefits.
Qualification Levels: JAN, JANTX, JANTXV, JANS and JANSR.
Radiation testing available TC = 25°C unless otherwise specified Rating Unit 40 Volts 75 Volts 5 Volts 1.5 A 1W 5.71 mW/°C 2.9 W 16.6 mW/°C 175 °C/W .06 -65 to +200 °C -65 to +200 °C Copyright 2010 Rev. G.
