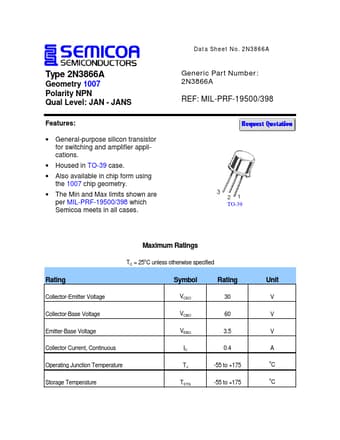

Data Sheet No. 2N3866A
Type 2N3866A
Geometry 1007 Polarity NPN Qual Level: JAN - JANS
Features: • General-purpose silicon transistor for switching and amplifier applications. Housed in TO-39 case. Also available in chip form using the 1007 chip geometry. The Min and Max limits shown are per MIL-PRF-19500/398 which Semicoa meets in all cases.
Generic Part Number: 2N3866A
REF: MIL-PRF-19500/398
• • •
TO-39
Maximum Ratings
TC = 25 C unless otherwise specified
o
Rating
Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Current, Continuous Operating Junction Temperature Storage Temperature
Symbol
VCEO VCBO VEBO IC TJ TSTG
Rating
30 60 3.5 0.4 -55 to +175 -55 to +175
Unit
V V V A
o
C C
o
Data Sheet No.
2N3866A Datasheet
