2N5005 - PNP Transistor

2N5005 Description

Data Sheet No.2N5005 Type 2N5005 Geometry 9702 Polarity PNP Qual Level: JAN - JANTXV .

2N5005 Applications

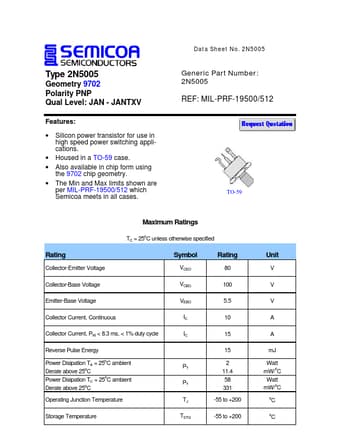

* Housed in a TO-59 case. Also available in chip form using the 9702 chip geometry. The Min and Max limits shown are per MIL-PRF-19500/512 which Semicoa meets in all cases. Generic Part Number: 2N5005 REF: MIL-PRF-19500/512 TO-59 Maximum Ratings TC = 25oC unless otherwise specified Rating Collec

📥 Download Datasheet

Preview of 2N5005 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2N5005
Manufacturer
Semicoa Semiconductor
File Size
153.16 KB
Datasheet
2N5005_SemicoaSemiconductor.pdf
Description
PNP Transistor
