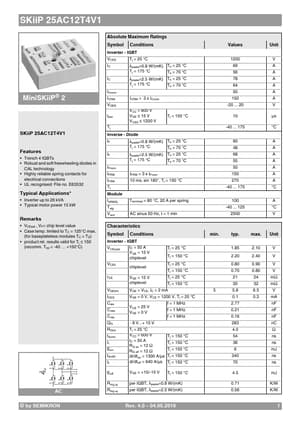

SKIIP25AC12T4V1 Datasheet, Igbt, Semikron International

SKIIP25AC12T4V1 Features

• Igbt
• Trench 4 IGBTs
• Robust and soft freewheeling diodes in CAL technology
• Highly reliable spring contacts for electrical connections
• UL recognised: Fi

PDF File Details

Part number:

SKIIP25AC12T4V1

Manufacturer:

Semikron International

File Size:

561.66kb

Download:

📄 Datasheet

Description:

Igbt.

SKIIP25AC12T4V1 Application

• Applications /li>
• Inverter up to 26 kVA
• Typical motor power 15 kW Remarks
• VCEsat , VF= chip level value

TAGS

SKIIP25AC12T4V1

Semikron International
