SKIIP39AC12T4V1 - 3-phase bridge inverter

Features

br>.
Trench 4 IGBTs.
Robust and soft switching freewheeling diodes in CAL technology.
Highly reliable spring contacts for electrical connections.
UL recognized: File no. E63532 Typical.

Semikron International

Datasheet Details

Part number	SKIIP39AC12T4V1
Manufacturer	Semikron International
File Size	1.01 MB
Description	3-phase bridge inverter
Datasheet	SKIIP39AC12T4V1 Datasheet

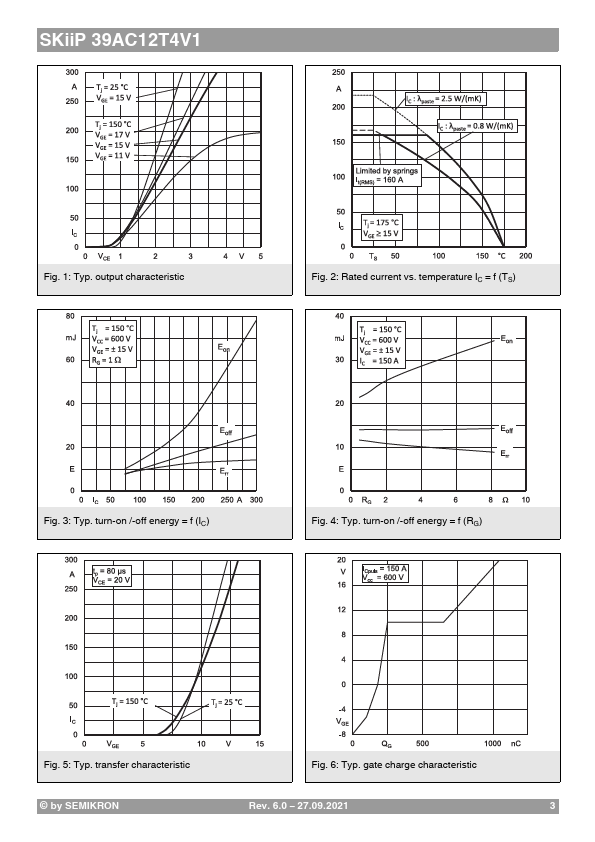

Additional preview pages of the SKIIP39AC12T4V1 datasheet.

📁 Similar Datasheet

SKiiP39AC12T4V10 - IGBT (Semikron)
SKiiP39AC12T4V21 - IGBT (Semikron)
SKiiP39AC12T7V1 - IGBT (Semikron)
SKiiP39AC126V20 - IGBT (Semikron)
SKiiP39GA12T4V1 - IGBT (Semikron)
SKiiP39GB12E4V1 - IGBT (Semikron)
SKiiP39GB12VV1 - IGBT (Semikron)
SKiiP39MLI07E3V1 - IGBT (Semikron)
SKiiP39MLI12T4V1 - IGBT (Semikron)
SKiiP39MLIB12F4V1 - IGBT (Semikron)

Other Datasheets by Semikron International

SKIIP39AC126V2 - IGBT
SKIIP39AC065V2 - 3-phase bridge inverter
SKIIP39AC066V2 - 3-phase bridge inverter
SKIIP39AC066V4 - 3-phase bridge inverter
SKIIP39AHB086V1 - 3-phase bridge rectifier brake chopper
SKIIP39AHB16V1 - IGBT
SKIIP39ANB086V1 - 3-phase bridge rectifier brake chopper
SKIIP39ANB16V1 - IGBT

Full PDF Text Transcription

Click to expand full text

SKiiP 39AC12T4V1 MiniSKiiP® 3 Sixpack SKiiP 39AC12T4V1 Features* • Trench 4 IGBTs • Robust and soft switching freewheeling diodes in CAL technology • Highly reliable spring contacts for electrical connections • UL recognized: File no. E63532 Typical Applications • Inverter up to 50 kVA • Typical motor power 30 kW Remarks • Max. case temperature limited to TC=125°C • Product reliability results valid for Tj≤150°C (recommended Tj,op=-40...+150°C) • For short circuit: Soft RGoff recommended • MiniSKiiP “Technical Explanations” and “Mounting Instructions” are part of the data sheet. Please refer to both documents for further information. AC © by SEMIKRON Absolute Maximum Ratings Symbol Conditions Inverter - IGBT VCES IC Tj = 25 °C λpaste=0.
