SKiiP38AC12T4V1 3-phase bridge inverter

Semikron International

Description

SKiiP 38AC12T4V1 MiniSKiiP® 3 Sixpack SKiiP 38AC12T4V1 .

📥 Download Datasheet

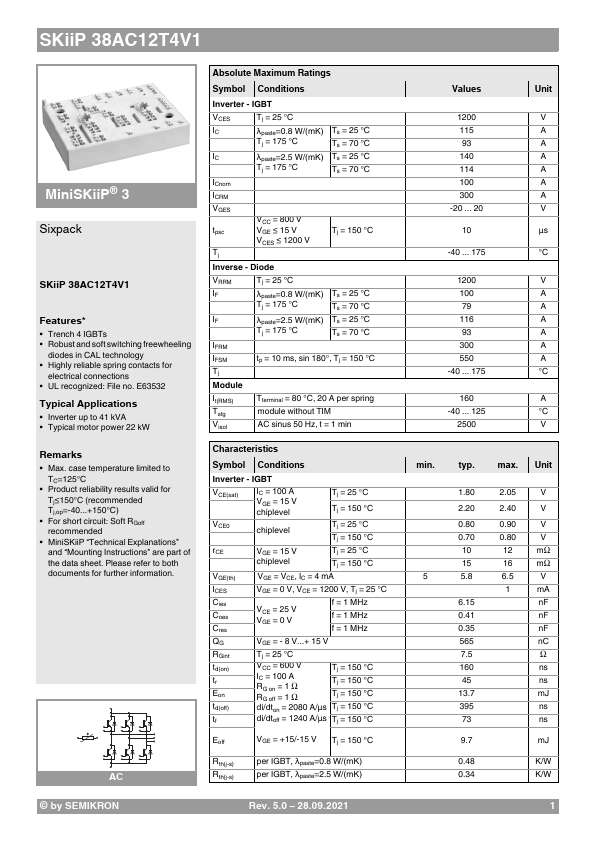

SKiiP38AC12T4V1 Datasheet Preview — Preview of SKiiP38AC12T4V1 PDF

Datasheet Specifications

Part number: SKiiP38AC12T4V1
Manufacturer: Semikron International
File Size: 903.73 KB
Datasheet: SKiiP38AC12T4V1-SemikronInternational.pdf
Description: 3-phase bridge inverter

Features

* br>
* Trench 4 IGBTs
* Robust and soft switching freewheeling diodes in CAL technology
* Highly reliable spring contacts for electrical connections

Applications

* Inverter up to 41 kVA
* Typical motor power 22 kW Remarks
* Max. case temperature limited to TC=125°C
* Product reliability results valid for Tj≤150°C (recommended Tj,op=-40+150°C)
* For short circuit: Soft RGoff recommended
* MiniSKiiP “Technical Ex
