DBI6-20P, DBI6-04P, Power Bridge Rectifier

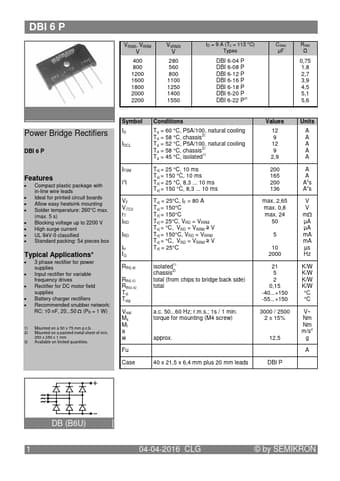

DBI 6 P VRSM, VRRM V 400 800 1200 1600 1800 2000 2200 VVRMS V 280 560 800 1100 1250 1400 1550 ID = 9 A (Tc = 113 °C) Types DBI 6-04 P DBI 6-08 P DB.

datasheet Preview Page 1 from Datasheet4u.com

DBI6-04P-Semikron.pdf

DBI6-20P Datasheet Preview — This datasheet PDF includes multiple part numbers: DBI6-20P, DBI6-04P. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DBI6-20P, DBI6-04P

Manufacturer:

Semikron

File Size:

377.78 KB

Description:

Power Bridge Rectifier

Note:

This datasheet PDF includes multiple part numbers: DBI6-20P, DBI6-04P.
Please refer to the document for exact specifications by model.

Features

* Compact plastic package with in-line wire leads
* Ideal for printed circuit boards
* Allow easy heatsink mounting
* Solder temperature: 260°C max. (max. 5 s)
* Blocking voltage up to 2200 V
* High surge current
* UL 94V-0 classified
* Standard packing: 54 pieces box

Applications

* br>
* 3 phase rectifier for power supplies
* Input rectifier for variable frequency drives
* Rectifier for DC motor field supplies
* Battery charger rectifiers
* Recommended snubber network: RC: 10 nF, 2050  (PR = 1 W) 1) Mounted on a 50 x 75 mm p. c. b. 2) Mounted on a painted m
