SK100DBB07F3TD1p - IGBT

SK100DBB07F3TD1p Description

SK100DBB07F3TD1p SEMITOP® 4 Press-Fit IGBT module SK100DBB07F3TD1p .

SK100DBB07F3TD1p Features

* One screw mounting module
* Solder free mounting with Press-Fit terminals
* Fully compatible with other SEMITOP® Press-Fit types
* Improved thermal performances by aluminum oxide substrate
* 650V Trench3 Fast IGBT technology
* 650V Rapid switching di

SK100DBB07F3TD1p Applications

* br>
* Three-level DC-DC converter Remarks
* Recommended Tjop= -40 +150°C
* IGBT1: outer IGBTs T1 & T4
* IGBT2: inner IGBTs T2 & T3
* Diode1: outer diodes D1 & D4
* Diode2: inner diodes D2 & D3 Absolute Maximum Ratings Symbol Conditions IGBT1 VCES IC IC

📥 Download Datasheet

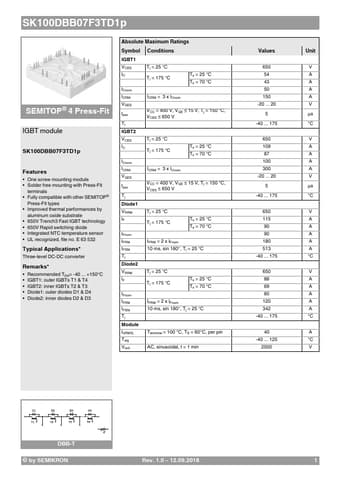

Preview of SK100DBB07F3TD1p PDF
