SKN300

Stud Diode

SKN300 Features

* Reverse voltages up to 1600 V

* Hermetic metal cases with glass insulator

* Threaded stud M16 x 1,5 mm. Also 3/4”

* 16 UNF 2A and M20 x 1,5 mm options.

* SKN: anode to stud

* SKR: cathode to stud Symbol IFAV IFSM i2t VF V(TO) rT IRD Qrr Rth(j-c) Rth(c-s) Tvj Tstg Visol M

SKN300 General Description

s end. (e.g. SKR 300/04 M20) Condition sin. 180 ; TC = 135 (120) ºC Tvj = 25º C ; 8,33 ms Tvj = 180º C ; 8,33 ms Tvj = 25º C ; 8,310 ms Tvj = 180º C ; 8,310 ms Tvj = 25º C, IF = 800 A Tvj = 160º C Tvj = 160º C Tvj = 180º C ; VR = VRRM Tvj = 160°C, -diF/dt = 10 A/µs to heatsink (SI units) to heatsin.

SKN300 Datasheet (200.24 KB)

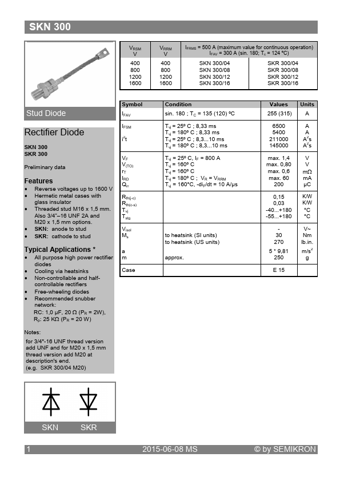

Preview of SKN300 PDF

Datasheet Details

Part number:

SKN300

Manufacturer:

Semikron

File Size:

200.24 KB

Description:

Stud diode.
SKN 300 VRSM V 400 800 1200 1600 VRRM V 400 800 1200 1600 IFRMS = 500 A (maximum value for continuous operation) IFAV = 300 A (sin. 180; Tc = 124 º.
