SKN70 Stud Diode

SKN70 Description

SKN 70, SKR 70 Stud Diode VRSM V 400 800 1200 1400 1600 Rectifier Diode SKN 70 SKR 70 Symbol IFAV ID IFSM .
for ¼ - 28 2A thread, while “M6” must be added for M6x1 thread VRRM V 400 800 1200 1400 1600 IFRMS = 150 A (maximum value for continuous operation).

SKN70 Features

* Reverse voltages up to 1600 V
* Hermetic metal case with glass insulator
* Cooling via heatsinks
* Threaded stud ISO M8, M6 or ¼ - 28 UNF 2A2)
* SKN: anode to stud

SKN70 Applications

* All purpose high power rectifier diodes
* Non-controllable and halfcontrollable rectifiers
* Free-wheeling diodes
* Recommended snubber network: RC: 0,1 µF, 100  (PR = 2W), Rp: 80 k (PR = 6 W) i2t VF V(TO) rT IRD Qrr Rth(j-c) Rth(c-s) Tvj Tstg Visol Ms a m Case 1) Mountin

📥 Download Datasheet

Preview of SKN70 PDF

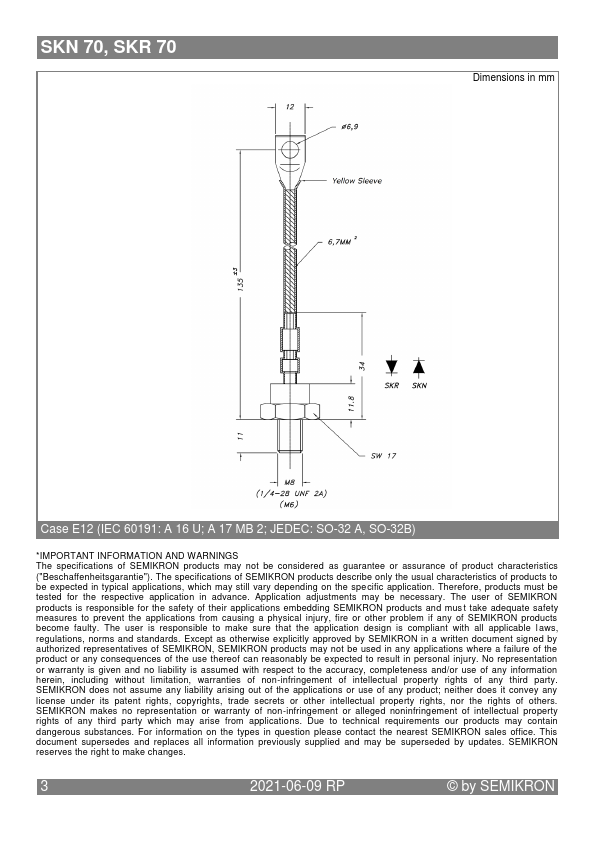

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SKN70
Manufacturer
Semikron
File Size
623.78 KB
Datasheet
SKN70-Semikron.pdf
Description
Stud Diode
