PES060N04GT - N-Channel Enhancement Mode Power MOSFET

Product Overview

Semione

📥 Download Datasheet

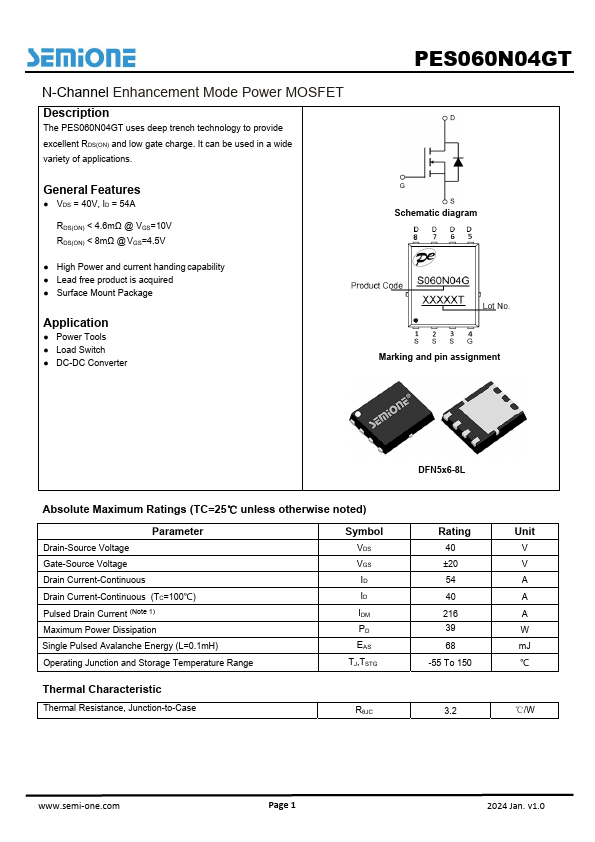

PES060N04GT N-Channel Enhancement Mode Power MOSFET by Semione - Datasheet Preview — Datasheet preview – PES060N04GT

Datasheet Details

Part number	PES060N04GT
Manufacturer	Semione
File Size	342.26 KB
Description	N-Channel Enhancement Mode Power MOSFET
Datasheet	PES060N04GT Datasheet

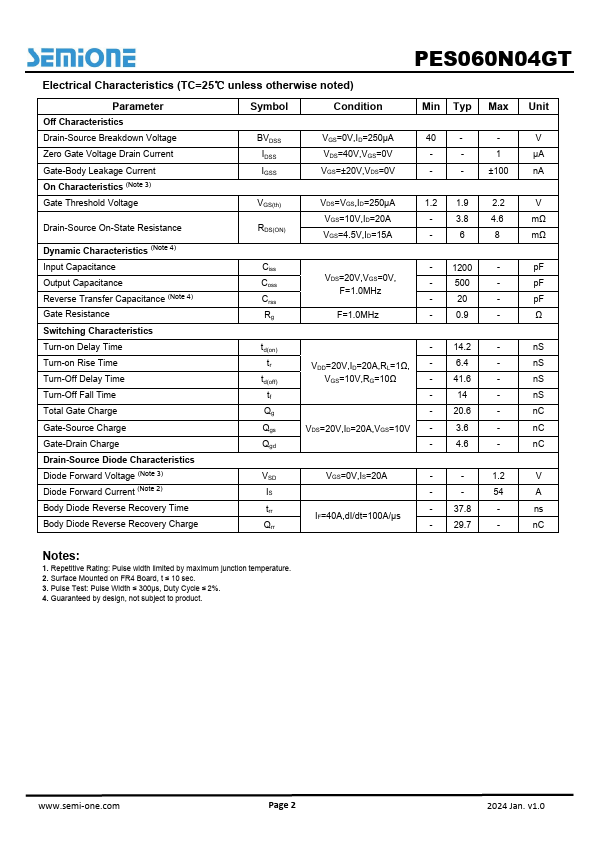

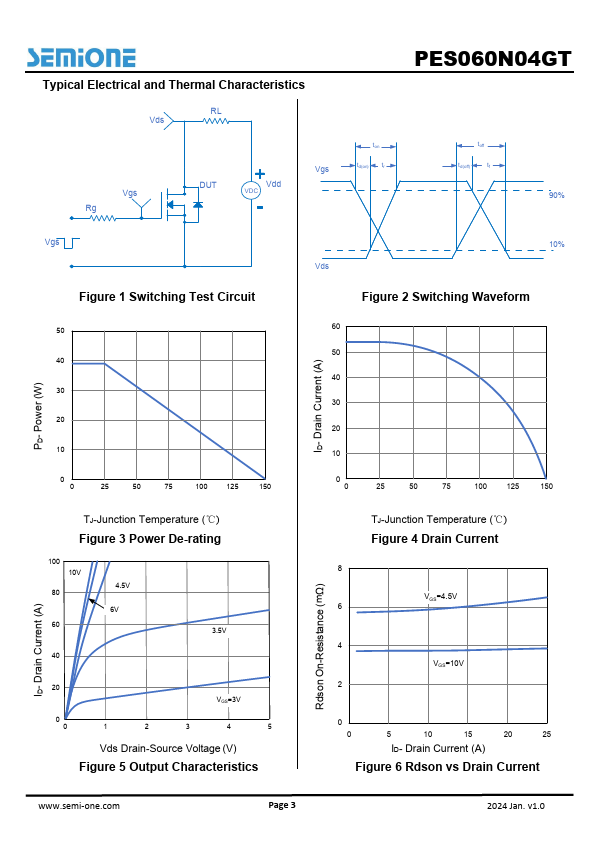

Additional preview pages of the PES060N04GT datasheet.

Product details

Description

The PES060N04GT uses deep trench technology to provide excellent RDS(ON) and low gate charge.

Features

VDS = 40V, ID = 54A RDS(ON) < 4.6mΩ @ VGS=10V RDS(ON) < 8mΩ @ VGS=4.5V.
High Power and current handing capability.
Lead free product is acquired.
Surface Mount Package.
