W08GM, W08M - Glass Passivated Single-Phase Bridge Rectifiers

Semitel

Datasheet Details

Part number	W08GM, W08M
Manufacturer	Semitel
File Size	202.19 KB
Description	Glass Passivated Single-Phase Bridge Rectifiers

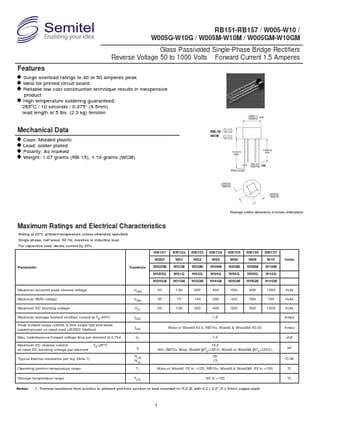

Datasheet	W08M-Semitel.pdf
Note	This datasheet PDF includes multiple part numbers: W08GM, W08M. Please refer to the document for exact specifications by model.

Surge overload ratings to 40 or 50 amperes peak Ideal for printed circuit board Reliable low cost construction technique results in inexpensive product High temperature soldering guaranteed: 265oC / 10 seconds / 0.375” (9.5mm) lead length at 5 lbs. (2.3 kg) tension Mechanical Data Case: Molded plastic Lead: solder plated Polarity: As marked Weight: 1.07 grams (RB-15), 1.10 grams (WOB) Package outline dimensions in inches (millimeters) Maximum Ratings and Electrical Characteristics Rating at 2.
