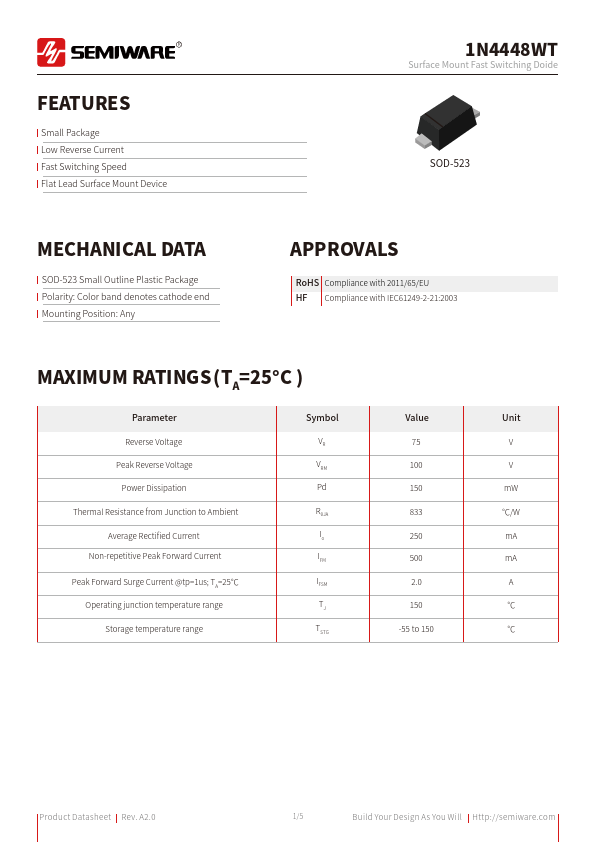

1N4448WT
FEATURES
Small Package Low Reverse Current Fast Switching Speed Flat Lead Surface Mount Device
Surface Mount Fast Switching Doide
SOD-523
MECHANICAL DATA
SOD-523 Small Outline Plastic Package Polarity: Color band denotes cathode end Mounting Position: Any
APPROVALS
Ro HS pliance with 2011/65/EU HF pliance with IEC61249-2-21:2003
MAXIMUM RATINGS (TA=25°C )
Parameter Reverse Voltage Peak Reverse Voltage Power Dissipation Thermal Resistance from Junction to Ambient Average Rectified Current Non-repetitive Peak Forward Current Peak Forward Surge Current @tp=1us; TA=25℃ Operating junction temperature range Storage temperature range
Symbol VR VRM Pd RθJA Io IFM IFSM TJ TSTG
Value 75 100 150 833 250 500 2.0 150
-55 to 150
Unit V V m W ℃/W m A m A
A ℃ ℃
Product Datasheet Rev. A2.0
1/5
Build Your Design As You Will Http://semiware.
Surface Mount Fast Switching Doide

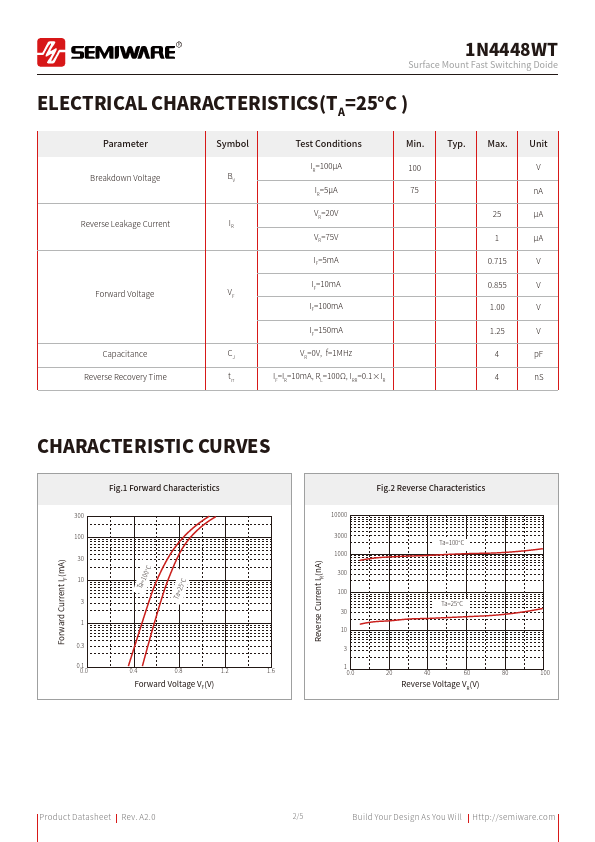

ELECTRICAL CHARACTERISTICS(TA=25°C )
Parameter Breakdown Voltage Reverse Leakage Current
Forward...
