GS2D, GS2A - Surface Mount General Purpose Rectfier

GS2D Description

GS2A-GS2V Surface Mount General Purpose Rec￿fier 1..

GS2D Features

* Low profile package Ideal for automated placement Glass passivated chip junc￿on High forward surge capability Low forward voltage drop 2. MECHANICAL DATA Package: DO-214AA (SMB) Molding compound meets UL 94 V-0 ßammability ra￿ng, RoHS-compliant, halogen-free Terminals: Tin plated leads, solderable

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: GS2D, GS2A. Please refer to the document for exact specifications by model.

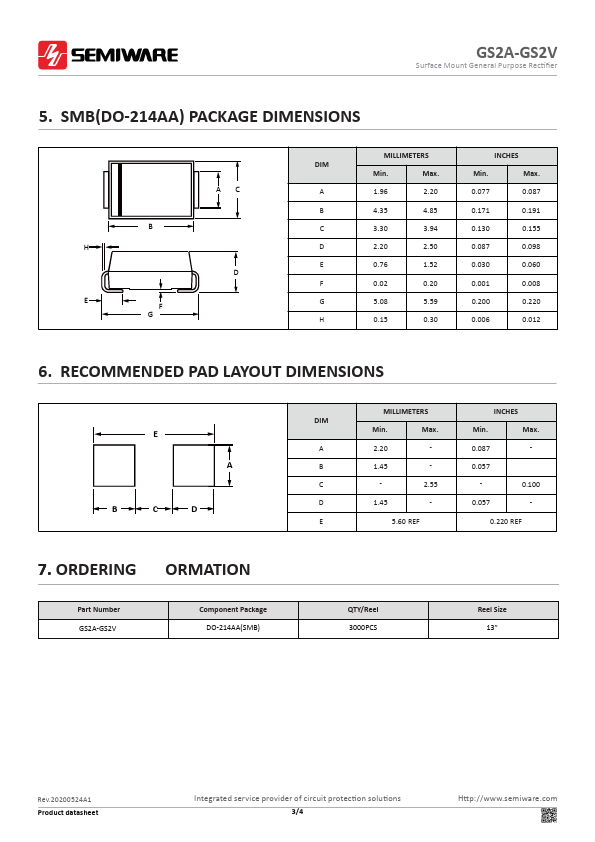

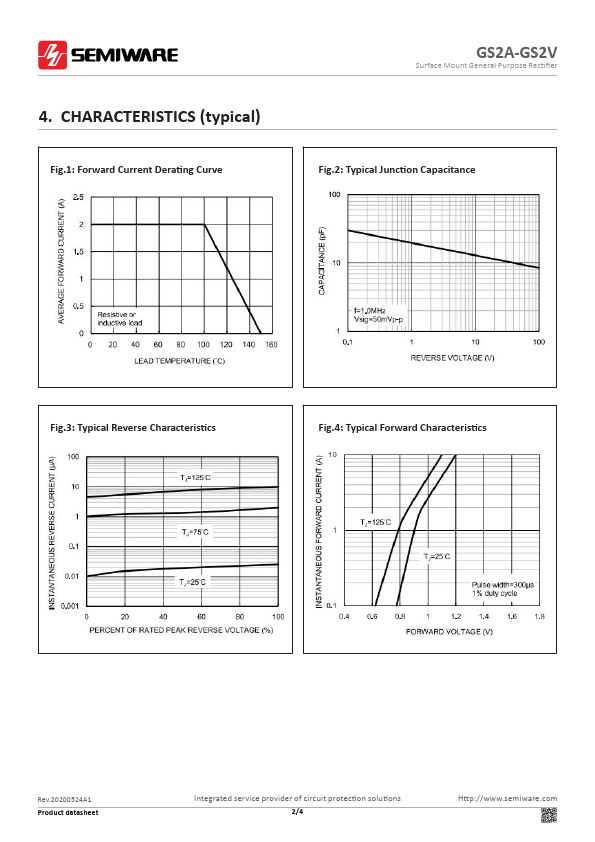

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
GS2D, GS2A
Manufacturer
Semiware
File Size
661.89 KB
Datasheet
GS2A-Semiware.pdf
Description
Surface Mount General Purpose Rectfier
Note
This datasheet PDF includes multiple part numbers: GS2D, GS2A.
Please refer to the document for exact specifications by model.
