RS2MA, RS2AA Ultra-Fast Recovery Rectifier Diode

📥 Download Datasheet Datasheet Preview Page 1

Description

R .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RS2MA, RS2AA. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
RS2MA, RS2AA
Manufacturer
Semiware
File Size
90.25 KB
Datasheet
RS2AA-Semiware.pdf
Description
Ultra-Fast Recovery Rectifier Diode
Note
This datasheet PDF includes multiple part numbers: RS2MA, RS2AA.
Please refer to the document for exact specifications by model.

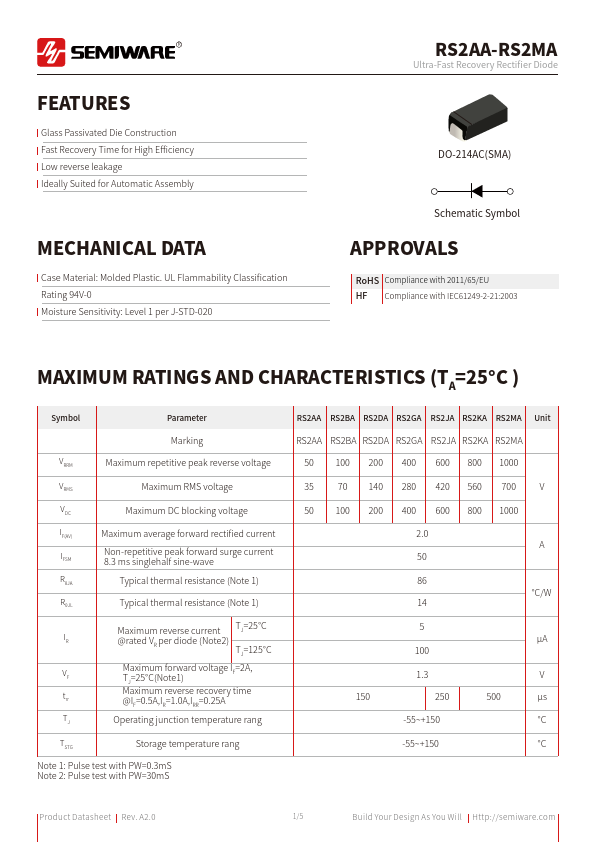

Features

* Glass Passivated Die Construction Fast Recovery Time for High Efficiency Low reverse leakage Ideally Suited for Automatic Assembly MECHANICAL DATA Case Material: Molded Plastic. UL Flammability Classification Rating 94V-0 Moisture Sensitivity: Level 1 per J-STD-020 RS2AA-RS2MA Ultra-Fast Recovery Rect
