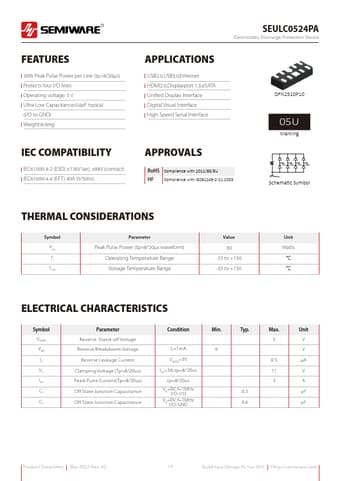

SEULC0524PA
FEATURES
30W Peak Pulse Power per Line (tp=8/20µs) Protects four I/O lines Operating voltage: 5 V Ultra Low Capacitance:0.4p F typical (I/O to GND) Weight:8.0mg
IEC PATIBILITY
IEC61000-4-2 (ESD) ±15k V (air), ±8k V (contact) IEC61000-4-4 (EFT ) 40A (5/50ns)
Electrostatic Discharge Protection Device
APPLICATIONS
USB2.0,USB3.0,Ethernet HDMI2.0,Displayport 1.3,e SATA Unified Display Interface Digital Visual Interface High Speed Serial Interface
APPROVALS
Ro HS pliance with 2011/65/EU HF pliance with IEC61249-2-21:2003
DFN2510P10
05U
Marking
Schematic Symbol
THERMAL CONSIDERATIONS
Symbol
Parameter Peak Pulse Power (tp=8/20μs waveform)
Operating Temperature Range Storage Temperature Range
Value 30
-55 to +150 -55 to +150
Unit Watts
℃ ℃
ELECTRICAL CHARACTERISTICS
Symbol VRWM VBR IR VC IPP CJ CJ
Parameter Reverse Stand-off Voltage Reverse Breakdowm Voltage Reverse Leakage Current Clamping Voltage ( Tp=8/20us) Peark Pulse Current(Tp=8/20us) Off State Junction Capacitance Off...
