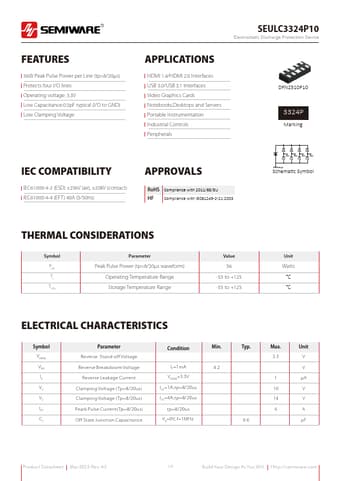

SEULC3324P10
FEATURES
56W Peak Pulse Power per Line (tp=8/20µs) Protects four I/O lines Operating voltage: 3.3V Low Capacitance:0.5p F typical (I/O to GND) Low Clamping Voltage
Electrostatic Discharge Protection Device
APPLICATIONS
HDMI 1.4/HDMI 2.0 Interfaces USB 3.0/USB 3.1 Interfaces Video Graphics Cards Notebooks,Desktops and Servers Portable Instrumentation Industrial Controls Peripherals
DFN2510P10
3324P
Marking
IEC PATIBILITY
IEC61000-4-2 (ESD) ±25k V (air), ±20k V (contact) IEC61000-4-4 (EFT ) 40A (5/50ns)
APPROVALS
Ro HS pliance with 2011/65/EU HF pliance with IEC61249-2-21:2003
Schematic Symbol
THERMAL CONSIDERATIONS
Symbol
Parameter Peak Pulse Power (tp=8/20μs waveform)
Operating Temperature Range Storage Temperature Range
Value 56
-55 to +125 -55 to +125
Unit Watts
℃ ℃
ELECTRICAL CHARACTERISTICS
Symbol VRWM VBR IR VC VC IPP CJ
Parameter Reverse Stand-off Voltage Reverse Breakdowm Voltage Reverse Leakage Current Clamping Voltage ( Tp=8/20us) Clamping Voltage (...
