1N5553 Datasheet, diode equivalent, Semtech Corporation

1N5553 Features

• Diode ‹ ‹ ‹ ‹ ‹ Low reverse leakage current Hermetically sealed in fused metal oxide Good thermal shock resistance Low forward voltage drop Avalanche capability These products are qualified

PDF File Details

Part number:

1N5553

Manufacturer:

Semtech Corporation

File Size:

191.21kb

Download:

📄 Datasheet

Description:

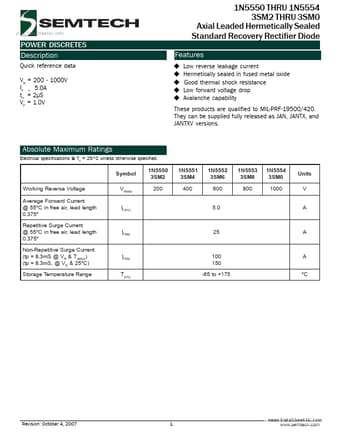

(1n5550 - 1n5554) axial leaded hermetically sealed standard recovery rectifier diode. Quick reference data VR = 200 - 1000V IF = 5.0A trr = 2µS VF = 1.0V 1N5550 THRU 1N5554 3SM2 THRU 3SM0 Axial Leaded Hermetically Seal
