1N5554 - (1N5550 - 1N5554) Axial Leaded Hermetically Sealed Standard Recovery Rectifier Diode

Semtech Corporation

The 1N5554 by Semtech Corporation is a (1N5550 - 1N5554) Axial Leaded Hermetically Sealed Standard Recovery Rectifier Diode. Below is the official datasheet preview.

📥 Download Datasheet

1N5554 (1N5550 - 1N5554) Axial Leaded Hermetically Sealed Standard Recovery Rectifier Diode by Semtech Corporation - Datasheet Preview — Official preview page of the **1N5554** (1N5550 - 1N5554) Axial Leaded Hermetically Sealed Standard Recovery Rectifier Diode datasheet (Semtech Corporation).

Datasheet Details

Part number	1N5554
Manufacturer	Semtech Corporation
File Size	191.21 KB
Description	(1N5550 - 1N5554) Axial Leaded Hermetically Sealed Standard Recovery Rectifier Diode
Datasheet	1N5554_SemtechCorporation.pdf

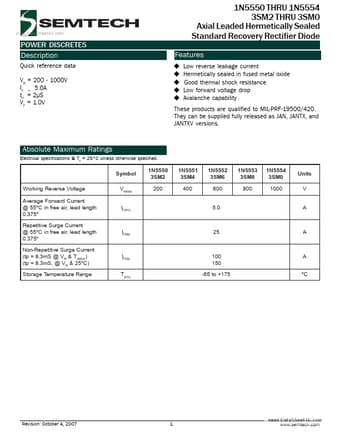

Additional preview pages of the 1N5554 datasheet.

1N5554 Product details

Description

Quick reference data VR = 200 - 1000V IF = 5.0A trr = 2µS VF = 1.0V 1N5550 THRU 1N5554 3SM2 THRU 3SM0 Axial Leaded Hermetically Sealed Standard Recovery Rectifier Diode

Features

Low reverse leakage current Hermetically sealed in fused metal oxide Good thermal shock resistance Low forward voltage drop Avalanche capability These products are qualified to MIL-PRF-19500/420. They can be supplied fully released as JAN, JANTX, and JANTXV versions. Absolute Maximum Ratings Electrical specifications @ TA = 25°C unless otherwise specified. Symbol Working Reverse Voltage Average Forward Current @ 55°C in free air, lead length 0.375" Repetitive Surge Current @ 55°C in.
