1N6130A

QPL 500 Watt Axial Leaded TVS

1N6130A Features

* 500 Watts Peak Pulse Power (tp = 10/1000µs) Voidless hermetically sealed glass package Metallurgically bonded High surge capacity Military & Industrial applications Available in JAN, JTX, and JTXV versions per MIL-S-19500/516 MECHANICAL

1N6130A General Description

The 1N61xx series of transient voltage suppressors are designed to protect military and commercial electronic equipment from overvoltages caused by lightning, ESD, EFT, inductive load switching, and EMP. These devices are constructed using two p-n junction TVS diodes in a back-toback configuration, .

1N6130A Datasheet (31.03 KB)

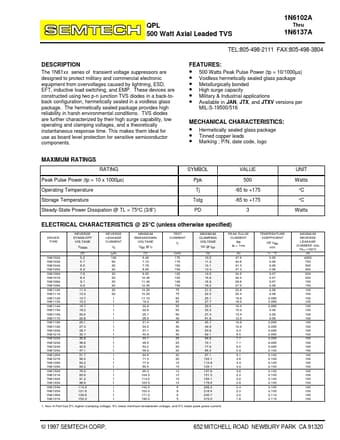

Preview of 1N6130A PDF

Datasheet Details

Part number:

1N6130A

Manufacturer:

Semtech Corporation

File Size:

31.03 KB

Description:

Qpl 500 watt axial leaded tvs.
