1N6160A - QPL 1500 Watt Axial Leaded TVS

Description

The 1N61xx series of transient voltage suppressors are designed to protect military and commercial electronic equipment from overvoltages caused by lightning, ESD, EFT, inductive load switching, and EMP.

Features

  • 1500 Watts Peak Pulse Power (tp = 10/1000µs) Voidless hermetically sealed glass package Metallurgically bonded High surge capacity Military & Industrial.

📥 Download Datasheet

Datasheet Details

Part number 1N6160A
Manufacturer SEMTECH
File Size 31.17 KB
Description QPL 1500 Watt Axial Leaded TVS
Datasheet download datasheet 1N6160A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
1N6160A Voidless Hermetically Sealed Bidirectional Transient Voltage Suppressors Microchip
1N6160A Voidless Hermetically Sealed Bidirectional Transient Voltage Suppressors Microsemi
1N6160AUS Voidless Hermetically Sealed Surface Mount Bidirectional Transient Voltage Suppressors Microsemi
1N6160AUS 1500W Bipolar Transient Voltage Suppressor Surface Mount Semtech
1N6160 1500W Bipolar Transient Voltage Suppressors Semtech

Other Datasheets by SEMTECH

Part Number Description
1N6161A QPL 1500 Watt Axial Leaded TVS
1N6162A QPL 1500 Watt Axial Leaded TVS
1N6163A QPL 1500 Watt Axial Leaded TVS
1N6164A QPL 1500 Watt Axial Leaded TVS
1N6165A QPL 1500 Watt Axial Leaded TVS

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

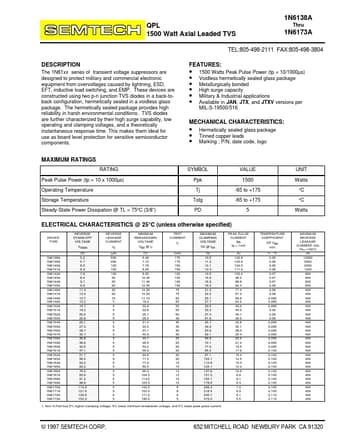

1N6138A QPL 1500 Watt Axial Leaded TVS Thru 1N6173A TEL:805-498-2111 FAX:805-498-3804 DESCRIPTION The 1N61xx series of transient voltage suppressors are designed to protect military and commercial electronic equipment from overvoltages caused by lightning, ESD, EFT, inductive load switching, and EMP. These devices are constructed using two p-n junction TVS diodes in a back-toback configuration, hermetically sealed in a voidless glass package. The hermetically sealed package provides high reliability in harsh environmental conditions. TVS diodes are further characterized by their high surge capability, low operating and clamping voltages, and a theoretically instantaneous response time. This makes them ideal for use as board level protection for sensitive semiconductor components.
