E818AHF

Octal 18V Pin Electronics Driver/window Comparator

E818AHF Features

* 18V I/O Range 50 MHz Operation Per Pin Flexibility Programmable Input Thresholds Flex In Digital Inputs Flex Out Digital Outputs Small footprint (100 pin MQFP) Applications

* Burn In ATE

* Low Cost ATE

* I

E818AHF General Description

The Edge818 is an octal pin electronics driver and window comparator fabricated in a wide voltage CMOS process. It is designed specifically for Test During Burn In (TDBI) applications, where cost, functional density, and power are all at a premium. The Edge818 incorporates eight channels of programm.

E818AHF Datasheet (87.54 KB)

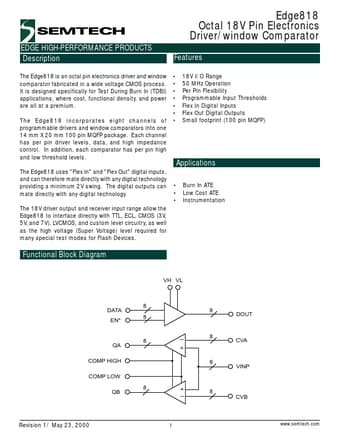

Preview of E818AHF PDF

Datasheet Details

Part number:

E818AHF

Manufacturer:

Semtech Corporation

File Size:

87.54 KB

Description:

Octal 18v pin electronics driver/window comparator.
