EZ5Z3 1A 5V to 3.3V or Adjustable Output EZ DROPPER

Semtech Corporation

Description

POWER MANAGEMENT .
The EZ5Z3 voltage converters are innovative two terminal devices that accept a regulated 5V input and reduce it to 3.

📥 Download Datasheet

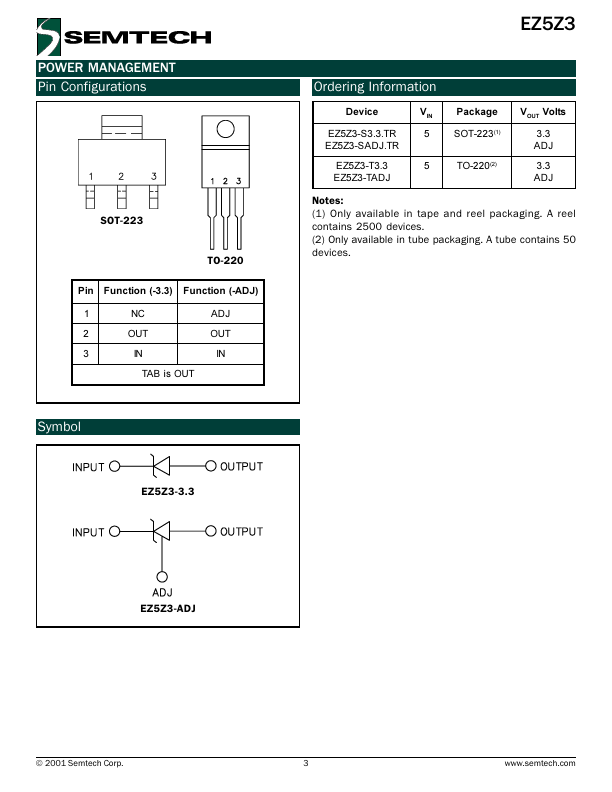

EZ5Z3 Datasheet Preview — Preview of EZ5Z3 PDF

Datasheet Specifications

Part number: EZ5Z3
Manufacturer: Semtech Corporation
File Size: 137.49 KB
Datasheet: EZ5Z3_SemtechCorporation.pdf
Description: 1A 5V to 3.3V or Adjustable Output EZ DROPPER

Applications

* Cellular Telephones Instrumentation Peripheral Cards Medical Equipment Typical Application Circuits U1 5V IN 3 IN EZ5Z3-3.3 2 OUT NC 3.3V OUT 1 U1 5V IN 3 IN EZ5Z3-ADJ 2 OUT ADJ 1 0.1V to 3.7V OUT R1 R2  R1  VDROP = VREF  1+ R   2   VOUT = VIN
* VDROP V R1 + R2 ≤ DROP 300 µA
