SC1660, SWITCHED CAPACITOR VOLTAGE CONVERTER

SWITCHED CAPACITOR VOLTAGE CONVERTER January 30, 1998 SC1660 TEL:805-498-2111 FAX:805-498-3804 WEB:http://www.semtech.com .
The SC1660 is a monolithic CMOS switched capacitor voltage converter.

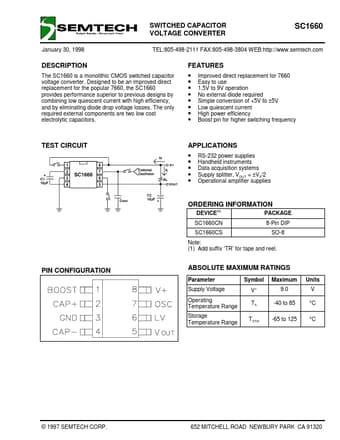

datasheet Preview Page 1 from Datasheet4u.com

SC1660_SemtechCorporation.pdf

SC1660 Datasheet Preview — Preview of SC1660 PDF

Datasheet Details

Part number:

SC1660

Manufacturer:

Semtech Corporation

File Size:

87.34 KB

Description:

SWITCHED CAPACITOR VOLTAGE CONVERTER

Features

* Improved direct replacement for 7660
* Easy to use
* 1.5V to 9V operation
* No external diode required
* Simple conversion of +5V to ±5V
* Low quiescent current
* High power efficiency
* Boost pin for higher switching frequency TEST

Applications

* RS-232 power supplies
* Handheld instruments
* Data acquisition systems
* Supply splitter, VOUT = ±VS/2
* Operational amplifier supplies ORDERING INFORMATION DEVICE (1) PACKAGE 8-Pin DIP SO-8 SC1660CN SC1660CS Note: (1) Add suffix ‘TR’ for tape and reel.
