SC2603

Simple PWM Boost Controller

SC2603 Features

* include a temperature compensated voltage reference, triangle wave oscillator, current limit www.DataSheet4U.com comparator, frequency shift over-current protection, and an internally compensated error amplifier. Pulse by pulse current limiting is implemented by sensing the differential voltage acro

SC2603 General Description

The SC2603 is a versatile, low-cost, voltage-mode PWM controller designed for 16V input DC/DC power supply applications. A simple, fixed-voltage boost regulator can be implemented using the SC2603 with a minimum of external components. The small device footprint allows for compact circuit design. SC.

SC2603 Datasheet (259.06 KB)

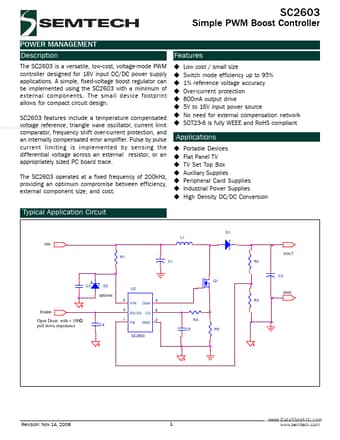

Preview of SC2603 PDF

Datasheet Details

Part number:

SC2603

Manufacturer:

Semtech Corporation

File Size:

259.06 KB

Description:

Simple pwm boost controller.
