SC4806

Multiple Function Double Ended PWM Controller

Semtech Corporation

SC4806 Features

* a programmable frequency up to 1MHZ, external www.DataSheet4U.com programmable soft start, pulse-by-pulse current limit and over current protection for both voltage and current modes, as well as a line monitoring input with hysteresis to reduce stress on the power components. A ramp pin allows for s

SC4806 General Description

The SC4806 is a double ended, high speed, highly integrated PWM controller optimized for applications requiring minimum space. The device is easily configurable for current mode or voltage mode operation and contains all the control circuitry required for isolated applications, where a secondary sid.

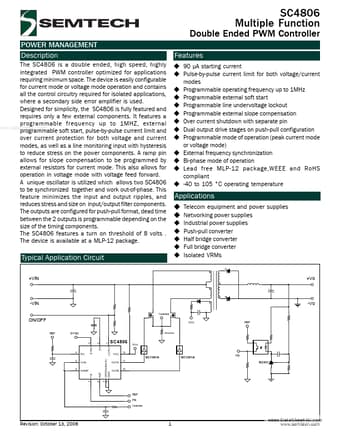

SC4806 Datasheet (520.90 KB)

SC4806 Datasheet Preview — Preview of SC4806 PDF

Datasheet Details

Part number:

SC4806

Manufacturer:

Semtech Corporation

File Size:

520.90 KB

Description:

Multiple function double ended pwm controller.
